Updated Matlab Colormaps

[arango]

The color maps released on ​src:ticket:744 were modified to allow interpolation according to the number of colors requested. All the color maps have 256 values, except cm_delta with 512 values.

All the color maps have an optional input argument for the number of colors desired. For example, cm_balance.m has:

% CM_BALANCE: 256 color palette from CMOCEAN
%
% cmap = cm_balance(M)
%
% BALANCE colormap by Kristen Thyng.
%
% On Input:
%
%    M        Number of colors (integer, OPTIONAL)
%
% On Ouput:
%
%    cmap     Mx3 colormap matrix
%
% Usage:
%
%    colormap(cm_balance)
%    colormap(flipud(cm_balance))
%
% https://github.com/matplotlib/cmocean/tree/master/cmocean/rgb
%
% Thyng, K.M., C.A. Greene, R.D. Hetland, H.M. Zimmerle, and S.F DiMarco, 2016:
%   True colord of oceanography: Guidelines for effective and accurate colormap
%   selection, Oceanography, 29(3), 9-13, http://dx.doi.org/10.5670/oceanog.2016.66
%

If we want to overwrite the default number of colors, we can use for example:

>> colormap(cm_balance(128));

or equivalent

>> cmocean('balance', 128);

notice that in cmocean the cm_ prefix is dropped. Read documentation by issuing the help command in Matlab.

---

Here are some of the examples with various color maps:

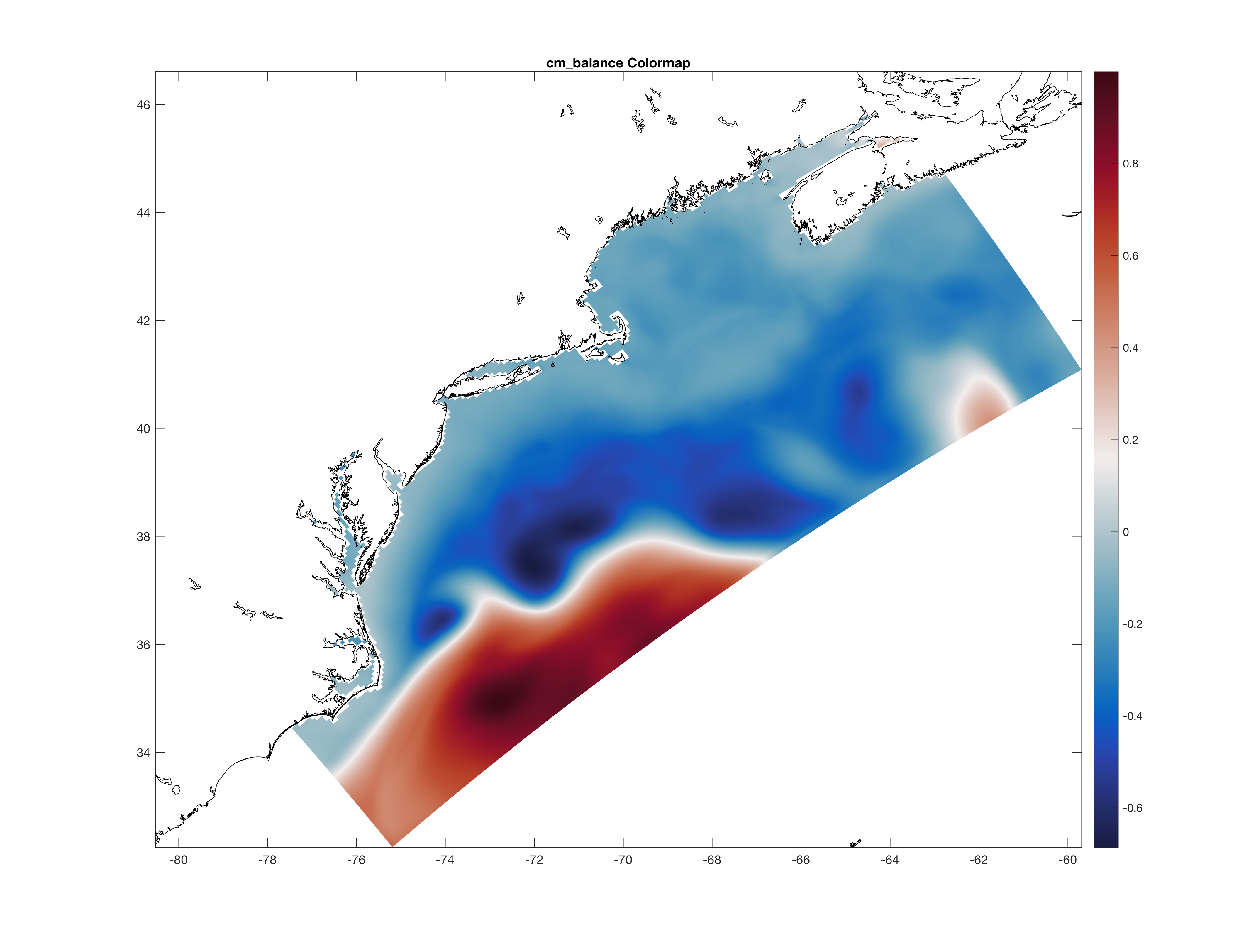

cm_balance:

cm_curl:

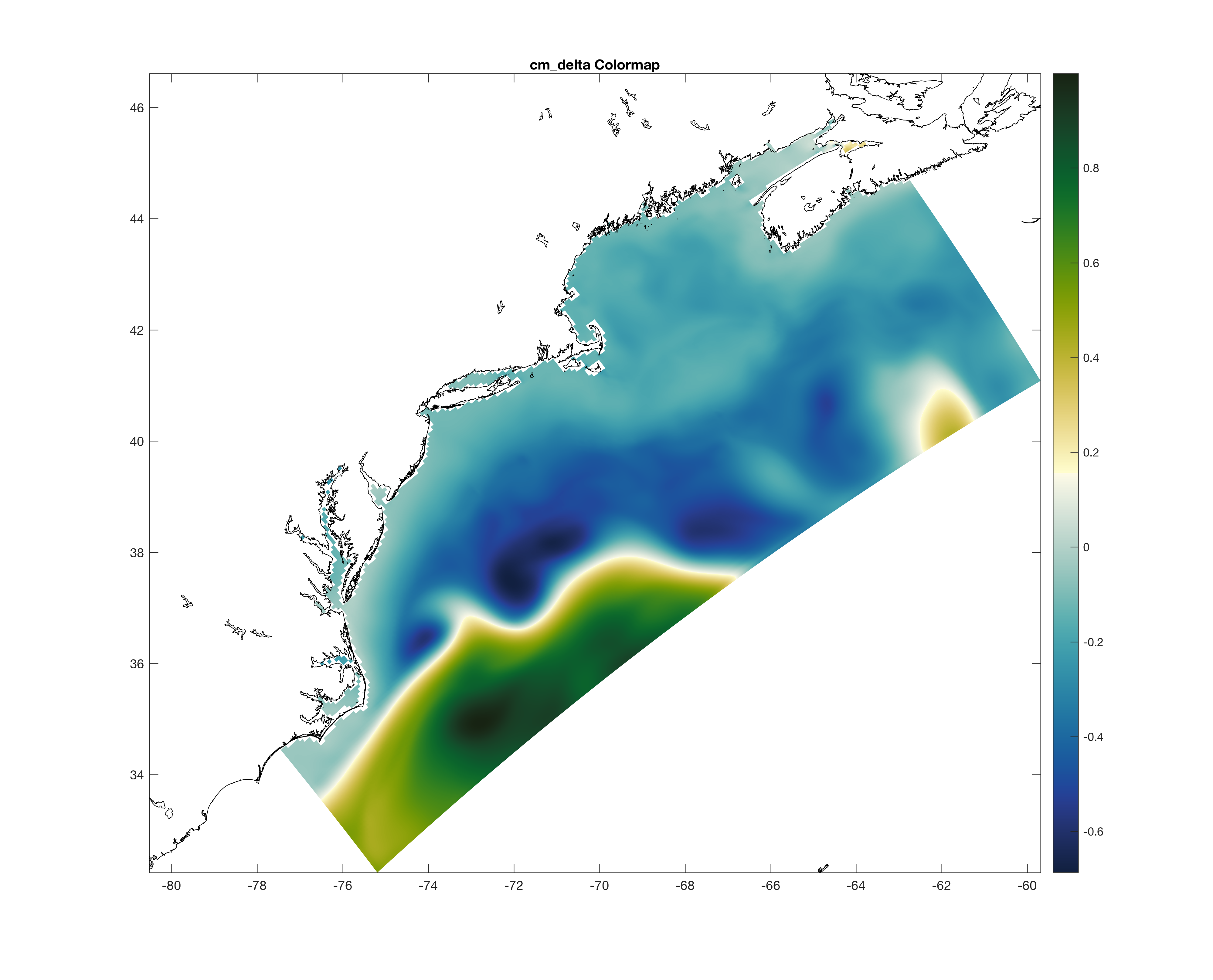

cm_delta:

cm_haline:

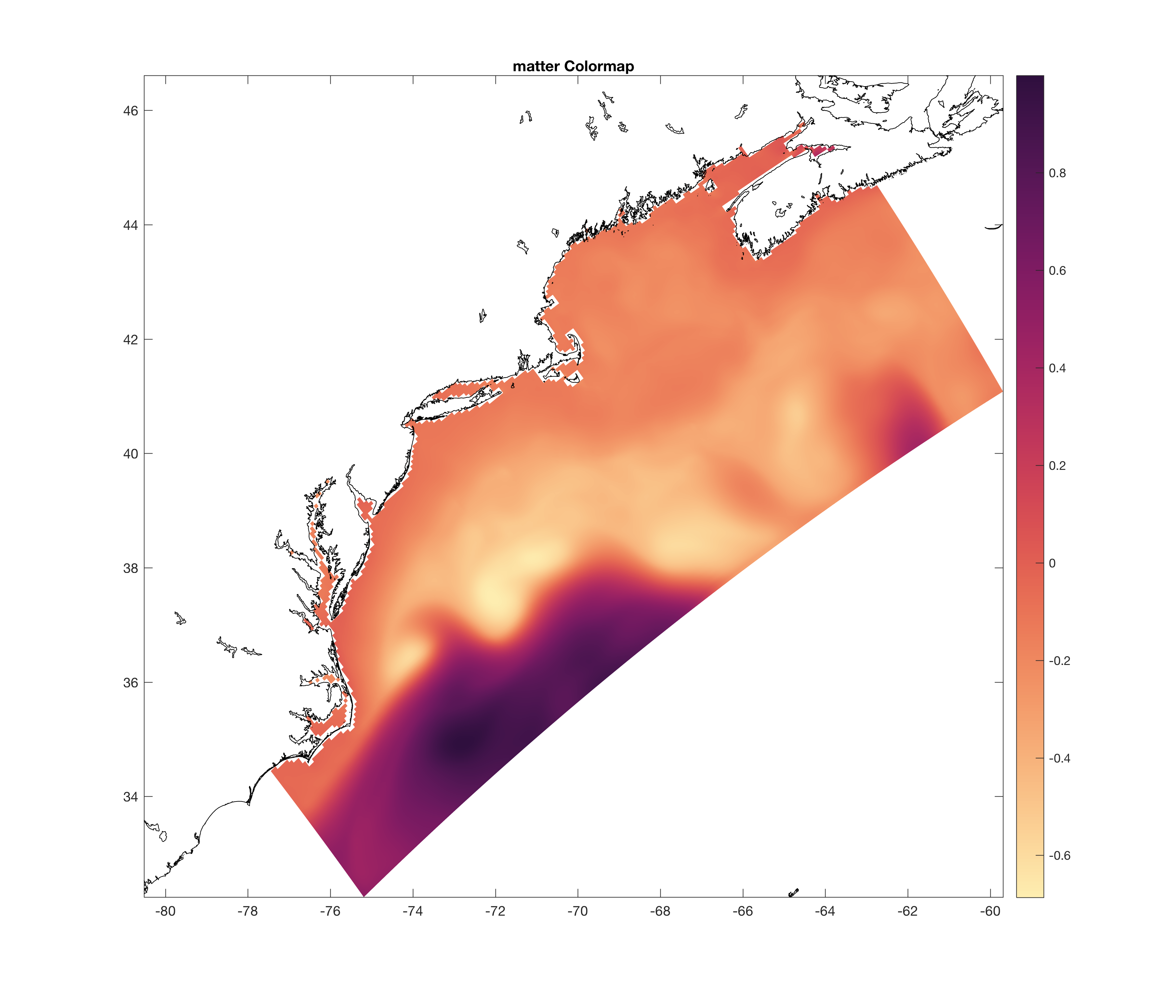

cm_matter:

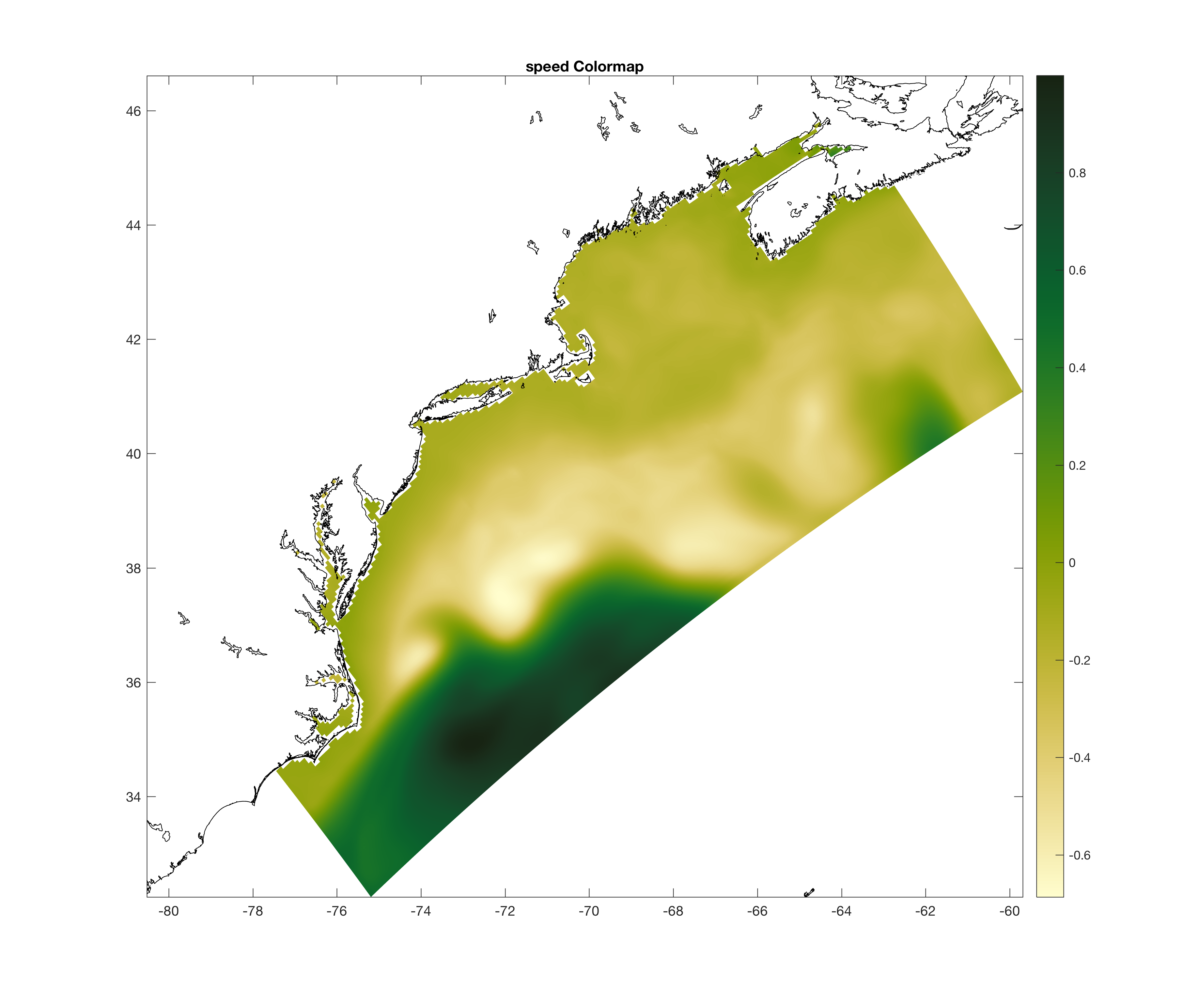

cm_speed:

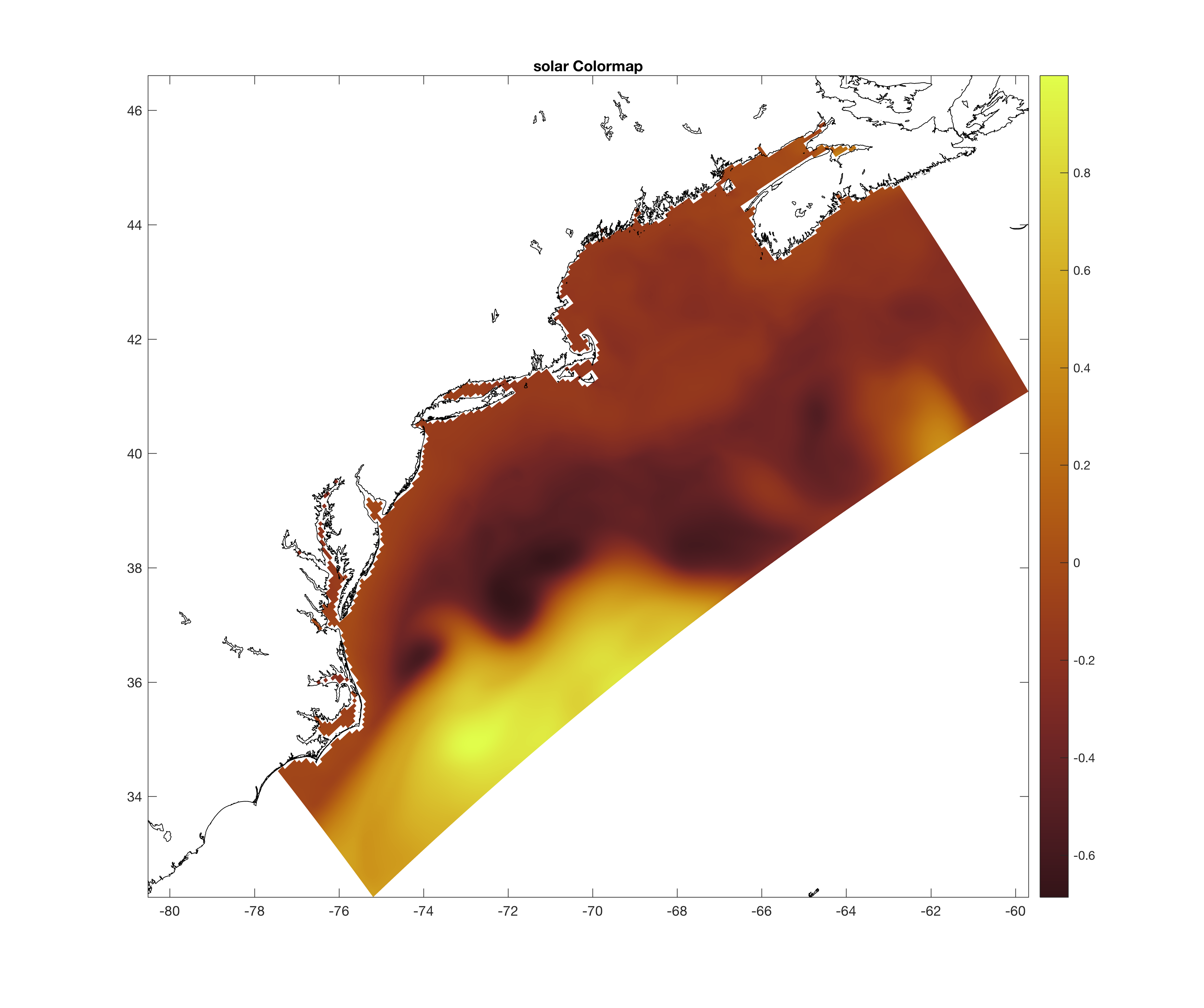

cm_solar:

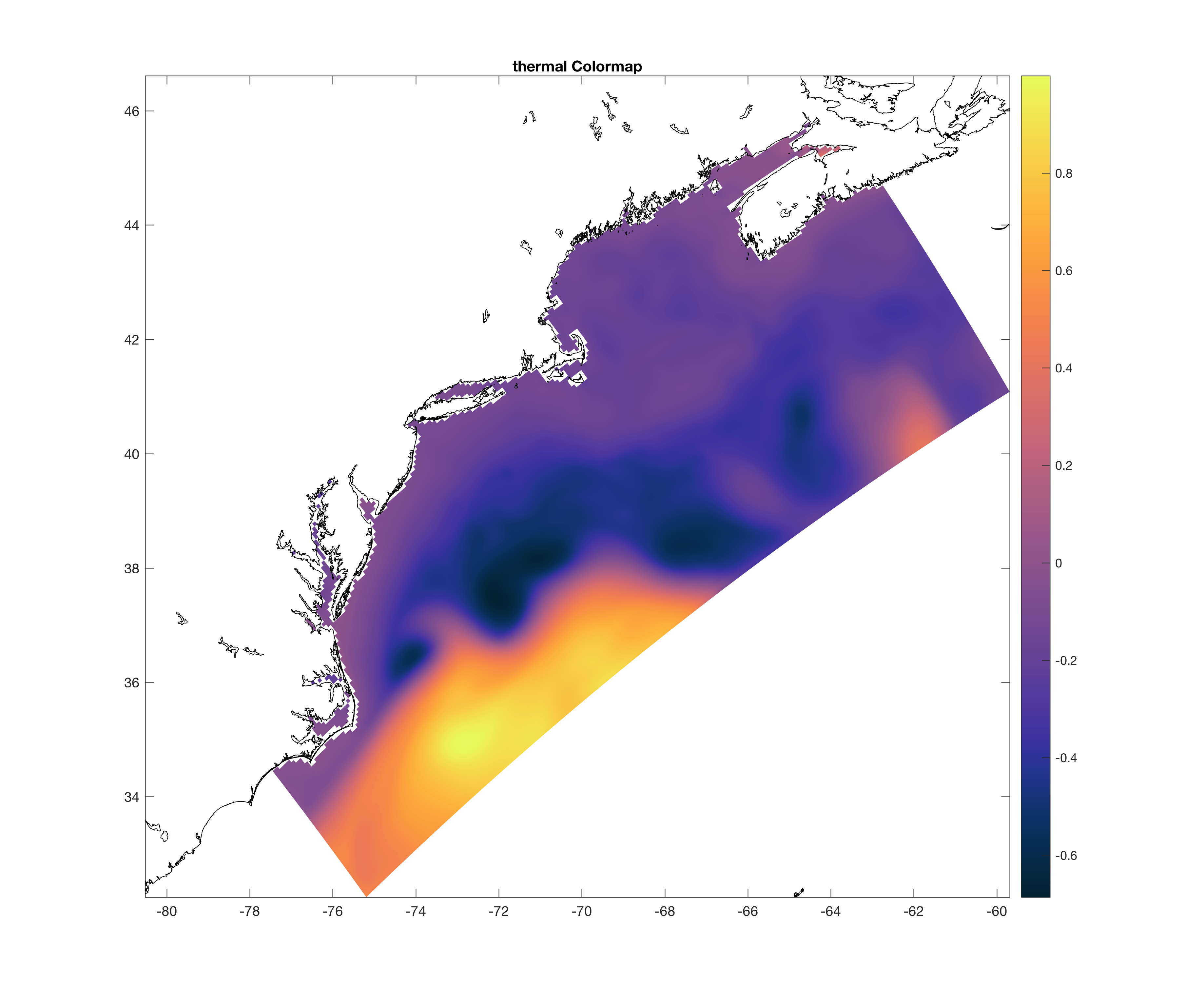

cm_thermal:

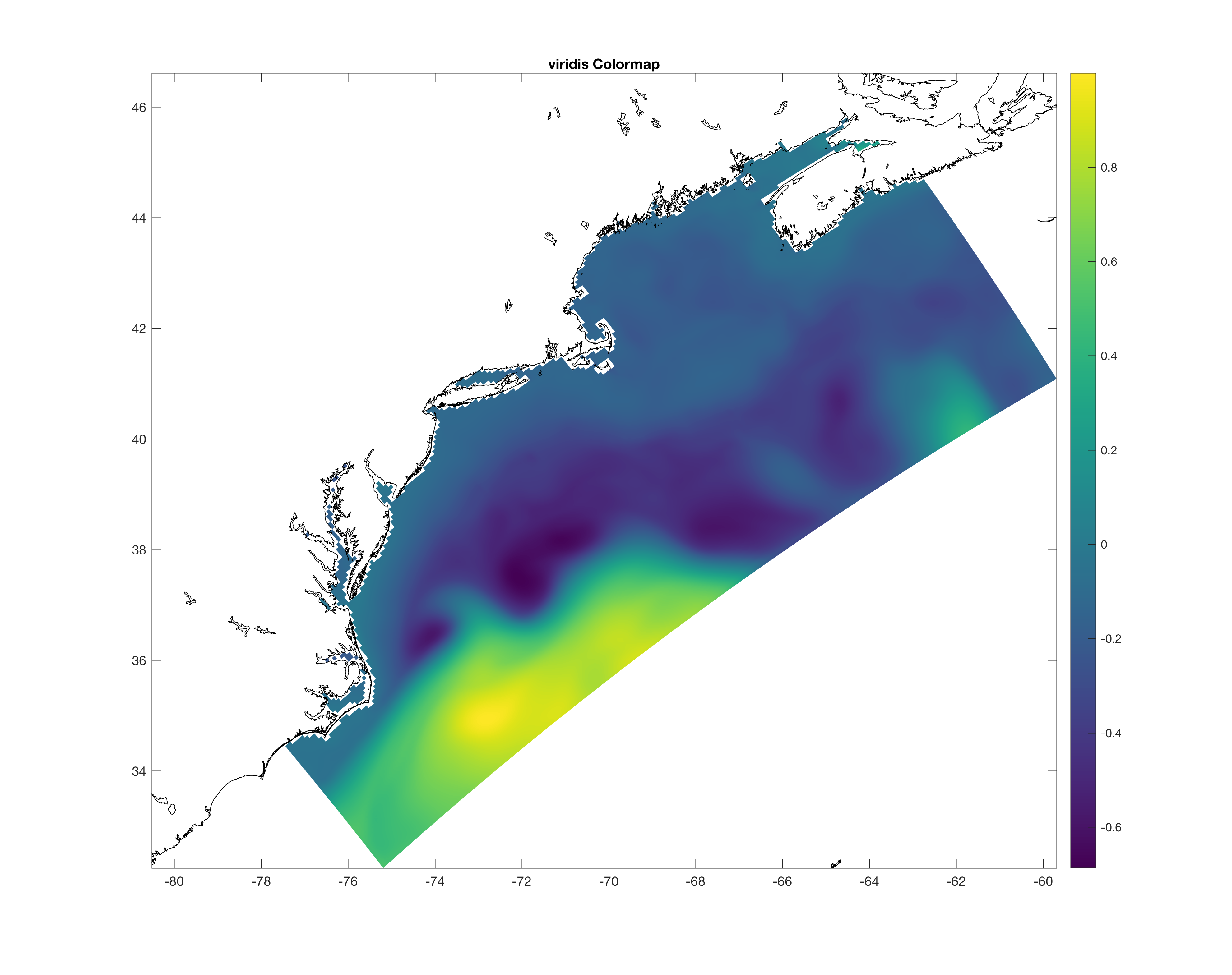

viridis:
