COAWST JOE_TC case compile error

[yxli]

When I tried the JOE_TC example, ./coawst.bash had the following problem


1. RUN - Inlet_test: ROMS+SWAN

parallel pass

2. RUN - JOE_TC: ROMS+WRF

parallel error

mct_coupler_params.f90(2): error #7002: Error in opening the compiled module file. Check INCLUDE paths. [MCT_WRF_COUPLER_PARAMS]
USE mct_wrf_coupler_params
----------^
compilation aborted for mct_coupler_params.f90 (code 1)
make: *** [Build/mct_coupler_params.o] Error 1
make: *** Waiting for unfinished jobs....

I think the problem comes from MCT, but ROMS+SWAN compile passed with this MCT. But I have defined MCT_INCDIR and MCT_LIBDIR in bashrc.

export MCT_INCDIR=/home/yxli20/mct/include
export MCT_LIBDIR=/home/yxli20/mct/lib

Please give me some advise!

[jcwarner]

for coawst issues, specific to compiling or running multiple models together, it is best to post an issue here:
https://github.com/DOI-USGS/COAWST/issues

your issue is that you selected a compiler for openmp and mpi. (dm+sm)
For cowast, you can only use mpi.
if you have further issues please post a message on the site above.
-j

[susonic]

I am using COAWST model (V3. with ROMS and SWAN couple.
I tried to compile the RIP_CURRENT case and faced with this error. I had no problem compile with ROMS only.
I only get this error when I compile with SWAN only or ROMS & SWAN.

I am using ifort(intel18). Netcdf(4.6.1)

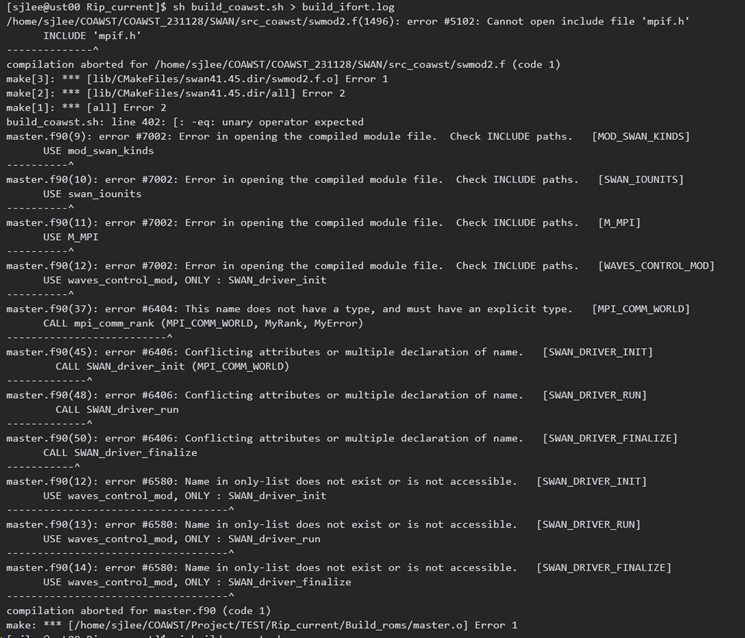

Total log file from compling is attached. I also attach the capture of error.

Please give me any comments regarding this issue.

[sissalVE]

It looks like your header file mpif.h is either corrupted or located in the wrong path. It could be that it is, compiled with a different compiler/compiler options?
You also have an error in line 402 of your build_coawst.sh script, where you have to delete a space or an extra [.

[yxli]

for coawst issues, specific to compiling or running multiple models together, it is best to post an issue here:
https://github.com/DOI-USGS/COAWST/issues

your issue is that you selected a compiler for openmp and mpi. (dm+sm)
For cowast, you can only use mpi.
if you have further issues please post a message on the site above.
-j

Hello, I'm currently troubled by another issue.. When I run the Sandy example of COAWST, the compilation process completes, but I encountered the following error during execution. I'm not running it on a cluster; instead, I'm using my own computer with a WSL virtual machine running a Linux environment. How can I resolve this?

Abort(537478405) on node 2 (rank 2 in comm 0): Fatal error in PMPI_Comm_rank: Invalid communicator, error stack:
PMPI_Comm_rank(107): MPI_Comm_rank(comm=0x0, rank=0x7ffe3af1d638) failed
PMPI_Comm_rank(64).: Invalid communicator

coawst.bash :
#!/bin/bash
#
# svn $Id: build.bash 429 2009-12-20 17:30:26Z jcwarner $
#::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
# Copyright (c) 2002-2017 The ROMS/TOMS Group :::
# Licensed under a MIT/X style license :::
# See License_ROMS.txt :::
#::::::::::::::::::::::::::::::::::::::::::::::::::::: Hernan G. Arango :::
#::::::::::::::::::::::::::::::::::::::::::::::::::::: John C. Warner :::
# :::
# ROMS/TOMS Compiling Script :::
# Modified to configure the COAWST Modeling System :::
# :::
# Script to identify locations of application-specific files for :::
# compiling the modeling sytem. :::
# :::
# Q: How/why does this script work? :::
# :::
# A: The ROMS makefile configures user-defined options with a set of :::
# flags such as ROMS_APPLICATION. Browse the makefile to see these. :::
# If an option in the makefile uses the syntax ?= in setting the :::
# default, this means that make will check whether an environment :::
# variable by that name is set in the shell that calls make. If so :::
# the environment variable value overrides the default (and the :::
# user need not maintain separate makefiles, or frequently edit :::
# the makefile, to run separate applications). :::
# :::
# Usage: :::
# :::
# ./build.bash [options] :::
# :::
# Options: :::
# :::
# -j [N] Compile in parallel using N CPUs :::
# omit argument for all available CPUs :::
# -noclean Do not clean already compiled roms objects :::
# -nocleanwrf Do not clean already compiled wrf objects :::
# :::
# Notice that sometimes the parallel compilation fail to find MPI :::
# include file "mpif.h". :::
# :::
#::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

parallel=0
clean=1
cleanwrf=1

while [ $# -gt 0 ]
do
case "$1" in
-j )
shift
parallel=1
test=`echo $1 | grep -P '^\d+$'`
if [ "$test" != "" ]; then
NCPUS="-j $1"
shift
else
NCPUS="-j"
fi
;;

-noclean )
shift
clean=0
;;

-nocleanwrf )
shift
cleanwrf=0
;;

* )
echo ""
echo "$0 : Unknown option [ $1 ]"
echo ""
echo "Available Options:"
echo ""
echo "-j [N] Compile in parallel using N CPUs"
echo " omit argument for all avaliable CPUs"
echo "-noclean Do not clean already compiled objects"
echo "-nocleanwrf Do not clean already compiled wrf objects"
echo ""
exit 1
;;
esac
done

# Set the CPP option defining the particular application. This will
# determine the name of the ".h" header file with the application
# CPP definitions.

export COAWST_APPLICATION=sandy

# Set the ROMS_APPLICATION to be the same as the COAWST_APP. We use the COAWST
# APP for other checks.
export ROMS_APPLICATION=${COAWST_APPLICATION}

# Set a local environmental variable to define the path to the directories
# where all this project's files are kept.

export MY_ROOT_DIR=/mnt/d/coawst
export MY_PROJECT_DIR=${MY_ROOT_DIR}

# The path to the user's local current ROMS source code.
#
# If using svn locally, this would be the user's Working Copy Path (WCPATH).
# Note that one advantage of maintaining your source code locally with svn
# is that when working simultaneously on multiple machines (e.g. a local
# workstation, a local cluster and a remote supercomputer) you can checkout
# the latest release and always get an up-to-date customized source on each
# machine. This script is designed to more easily allow for differing paths
# to the code and inputs on differing machines.

export MY_ROMS_SRC=${MY_ROOT_DIR}/

# Set path of the directory containing makefile configuration (*.mk) files.
# The user has the option to specify a customized version of these files
# in a different directory than the one distributed with the source code,
# ${MY_ROMS_SRC}/Compilers. If this is the case, the you need to keep
# these configurations files up-to-date.

#export COMPILERS=${MY_ROMS_SRC}/Compilers

# Set tunable CPP options.
#
# Sometimes it is desirable to activate one or more CPP options to run
# different variants of the same application without modifying its header
# file. If this is the case, specify each options here using the -D syntax.
# Notice also that you need to use shell's quoting syntax to enclose the
# definition. Both single or double quotes work. For example,
#
#export MY_CPP_FLAGS="-DAVERAGES"
#export MY_CPP_FLAGS="${MY_CPP_FLAGS} -DDEBUGGING"
#
# can be used to write time-averaged fields. Notice that you can have as
# many definitions as you want by appending values.

#export MY_CPP_FLAGS="-D"

# Other user defined environmental variables. See the ROMS makefile for
# details on other options the user might want to set here. Be sure to
# leave the switches meant to be off set to an empty string or commented
# out. Any string value (including off) will evaluate to TRUE in
# conditional if-statements.

export USE_MPI=on # distributed-memory parallelism
export USE_MPIF90=on # compile with mpif90 script
#export which_MPI=mpich # compile with MPICH library
#export which_MPI=mpich2 # compile with MPICH2 library
export which_MPI=openmpi # compile with OpenMPI library

#export USE_OpenMP=on # shared-memory parallelism

export FORT=mpiifort
#export FORT=gfortran
#export FORT=pgi

export USE_DEBUG= # use Fortran debugging flags
export USE_LARGE= # activate 64-bit compilation
export USE_NETCDF4=on # compile with NetCDF-4 library
#export USE_PARALLEL_IO=on # Parallel I/O with Netcdf-4/HDF5

#export USE_MY_LIBS=on # use my library paths below

# There are several MPI libraries available. Here, we set the desired
# "mpif90" script to use during compilation. This only works if the make
# configuration file (say, Linux-pgi.mk) in the "Compilers" directory
# has the following definition for FC (Fortran Compiler) in the USE_MPI
# section:
#
# FC := mpif90
#
# that is, "mpif90" defined without any path. Notice that the path
# where the MPI library is installed is computer dependent. Recall
# that you still need to use the appropriate "mpirun" to execute.

if [ -n "${USE_MPIF90:+1}" ]; then
case "$FORT" in
mpiifort )
if [ "${which_MPI}" = "mpich" ]; then
export PATH=/opt/intelsoft/mpich/bin:$PATH
elif [ "${which_MPI}" = "mpich2" ]; then
export PATH=/opt/intelsoft/mpich2/bin:$PATH
elif [ "${which_MPI}" = "openmpi" ]; then
export PATH=$PATH:/home/yxli/intel/oneapi/mpi/2021.4.0/bin
fi
;;

pgi )
if [ "${which_MPI}" = "mpich" ]; then
export PATH=/opt/pgisoft/mpich/bin:$PATH
elif [ "${which_MPI}" = "mpich2" ]; then
export PATH=/opt/pgisoft/mpich2/bin:$PATH
elif [ "${which_MPI}" = "openmpi" ]; then
export PATH=/opt/pgisoft/openmpi/bin:$PATH
fi
;;

gfortran )
if [ "${which_MPI}" = "mpich2" ]; then
export PATH=/opt/gfortransoft/mpich2/bin:$PATH
elif [ "${which_MPI}" = "openmpi" ]; then
export PATH=/opt/gfortransoft/openmpi/bin:$PATH
fi
;;

esac
fi

# If the USE_MY_LIBS is activated above, the path of the libraries
# required by ROMS can be set here using environmental variables
# which take precedence to the values specified in the make macro
# definitions file (Compilers/*.mk). For most applications, only
# the location of the NetCDF library is needed during compilation.
#
# Notice that when the USE_NETCDF4 macro is activated, we need the
# serial or parallel version of the NetCDF-4/HDF5 library. The
# configuration script NF_CONFIG (available since NetCDF 4.0.1)
# is used to set up all the required libraries according to the
# installed options (openDAP, netCDF4/HDF5 file format). The
# parallel library uses the MPI-I/O layer (usually available
# in MPICH2 and OpenMPI) requiring compiling with the selected
# MPI library.
#
# In ROMS distributed-memory applications, you may use either the
# serial or parallel version of the NetCDF-4/HDF5 library. The
# parallel version is required when parallel I/O is activated
# (ROMS cpp option PARALLEL_IO and HDF5).
#
# However, in serial or shared-memory ROMS applications, we need
# to use the serial version of the NetCDF-4/HDF5 to avoid conflicts
# with the compiler. We cannot activate MPI constructs in serial
# or shared-memory ROMS code. Hybrid parallelism is not possible.
#
# Recall also that the MPI library comes in several flavors:
# MPICH, MPICH2, OpenMPI, etc.

if [ -n "${USE_MY_LIBS:+1}" ]; then
case "$FORT" in
mpiifort )
export ESMF_OS=Linux
export ESMF_COMPILER=mpiifort
export ESMF_BOPT=O
export ESMF_ABI=64
export ESMF_COMM=mpich
export ESMF_SITE=default

export ARPACK_LIBDIR=/opt/intelsoft/serial/ARPACK
if [ -n "${USE_MPI:+1}" ]; then
if [ "${which_MPI}" = "mpich" ]; then
export ESMF_DIR=/opt/intelsoft/mpich/esmf
export MCT_INCDIR=/home/yxli/Build_COAWST/LIBRARIES/MCT/include
export MCT_LIBDIR=/home/yxli/Build_COAWST/LIBRARIES/MCT/lib
export PARPACK_LIBDIR=/opt/intelsoft/mpich/PARPACK
elif [ "${which_MPI}" = "mpich2" ]; then
export ESMF_DIR=/opt/intelsoft/mpich2/esmf
export MCT_INCDIR=/opt/intelsoft/mpich2/mct/include
export MCT_LIBDIR=/opt/intelsoft/mpich2/mct/lib
export PARPACK_LIBDIR=/opt/intelsoft/mpich2/PARPACK
elif [ "${which_MPI}" = "openmpi" ]; then
export ESMF_DIR=/opt/intelsoft/openmpi/esmf
export MCT_INCDIR=/home/yxli/Build_COAWST/LIBRARIES/MCT/include
#/opt/intelsoft/openmpi/mct/include
export MCT_LIBDIR=/home/yxli/Build_COAWST/LIBRARIES/MCT/lib
#/opt/intelsoft/openmpi/mct/lib
export PARPACK_LIBDIR=/opt/intelsoft/openmpi/PARPACK
fi
fi

if [ -n "${USE_NETCDF4:+1}" ]; then
if [ -n "${USE_PARALLEL_IO:+1}" ] && [ -n "${USE_MPI:+1}" ]; then
if [ "${which_MPI}" = "mpich" ]; then
export NF_CONFIG=/opt/intelsoft/mpich/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/intelsoft/mpich/netcdf4/include
elif [ "${which_MPI}" = "mpich2" ]; then
export NF_CONFIG=/opt/intelsoft/mpich2/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/intelsoft/mpich2/netcdf4/include
elif [ "${which_MPI}" = "openmpi" ]; then
export NF_CONFIG=/home/yxli/Build_COAWST/LIBRARIES/netcdf/bin/nf-config
export NETCDF_INCDIR=/home/yxli/Build_COAWST/LIBRARIES/netcdf/include
fi
else
export NF_CONFIG=/home/yxli/Build_COAWST/LIBRARIES/netcdf/bin/nf-config
export NETCDF_INCDIR=/home/yxli/Build_COAWST/LIBRARIES/netcdf/include
fi
else
export NETCDF_INCDIR=/home/yxli/Build_COAWST/LIBRARIES/netcdf/include
export NETCDF_LIBDIR=/home/yxli/Build_COAWST/LIBRARIES/netcdf/lib
fi
;;

pgi )
export ESMF_OS=Linux
export ESMF_COMPILER=pgi
export ESMF_BOPT=O
export ESMF_ABI=64
export ESMF_COMM=mpich
export ESMF_SITE=default

export ARPACK_LIBDIR=/opt/pgisoft/serial/ARPACK
if [ -n "${USE_MPI:+1}" ]; then
if [ "${which_MPI}" = "mpich" ]; then
export ESMF_DIR=/opt/pgisoft/mpich/esmf
export MCT_INCDIR=/opt/pgisoft/mpich/mct/include
export MCT_LIBDIR=/opt/pgisoft/mpich/mct/lib
export PARPACK_LIBDIR=/opt/pgisoft/mpich/PARPACK
elif [ "${which_MPI}" = "mpich2" ]; then
export ESMF_DIR=/opt/pgisoft/mpich2/esmf
export MCT_INCDIR=/opt/pgisoft/mpich2/mct/include
export MCT_LIBDIR=/opt/pgisoft/mpich2/mct/lib
export PARPACK_LIBDIR=/opt/pgisoft/mpich2/PARPACK
elif [ "${which_MPI}" = "openmpi" ]; then
export ESMF_DIR=/opt/pgisoft/openmpi/esmf
export MCT_INCDIR=/opt/pgisoft/openmpi/mct/include
export MCT_LIBDIR=/opt/pgisoft/openmpi/mct/lib
export PARPACK_LIBDIR=/opt/pgisoft/openmpi/PARPACK
fi
fi

if [ -n "${USE_NETCDF4:+1}" ]; then
if [ -n "${USE_PARALLEL_IO:+1}" ] && [ -n "${USE_MPI:+1}" ]; then
if [ "${which_MPI}" = "mpich" ]; then
export NF_CONFIG=/opt/pgisoft/mpich/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/pgisoft/mpich/netcdf4/include
elif [ "${which_MPI}" = "mpich2" ]; then
export NF_CONFIG=/opt/pgisoft/mpich2/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/pgisoft/mpich2/netcdf4/include
elif [ "${which_MPI}" = "openmpi" ]; then
export NF_CONFIG=/opt/pgisoft/openmpi/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/pgisoft/openmpi/netcdf4/include
fi
else
export NF_CONFIG=/opt/pgisoft/serial/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/pgisoft/serial/netcdf4/include
fi
else
export NETCDF_INCDIR=/opt/pgisoft/serial/netcdf3/include
export NETCDF_LIBDIR=/opt/pgisoft/serial/netcdf3/lib
fi
;;

gfortran )
export ESMF_OS=Linux
export ESMF_COMPILER=gfortran
export ESMF_BOPT=O
export ESMF_ABI=64
export ESMF_COMM=mpich
export ESMF_SITE=default

export ARPACK_LIBDIR=/opt/gfortransoft/serial/ARPACK
if [ -n "${USE_MPI:+1}" ]; then
if [ "${which_MPI}" = "mpich2" ]; then
export ESMF_DIR=/opt/gfortransoft/mpich2/esmf
export MCT_INCDIR=/opt/gfortransoft/mpich2/mct/include
export MCT_LIBDIR=/opt/gfortransoft/mpich2/mct/lib
export PARPACK_LIBDIR=/opt/gfortransoft/mpich2/PARPACK
elif [ "${which_MPI}" = "openmpi" ]; then
export ESMF_DIR=/opt/gfortransoft/openmpi/esmf
export MCT_INCDIR=/opt/gfortransoft/openmpi/mct/include
export MCT_LIBDIR=/opt/gfortransoft/openmpi/mct/lib
export PARPACK_LIBDIR=/opt/gfortransoft/openmpi/PARPACK
fi
fi

if [ -n "${USE_NETCDF4:+1}" ]; then
if [ -n "${USE_PARALLEL_IO:+1}" ] && [ -n "${USE_MPI:+1}" ]; then
if [ "${which_MPI}" = "mpich2" ]; then
export NF_CONFIG=/opt/gfortransoft/mpich2/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/gfortransoft/mpich2/netcdf4/include
elif [ "${which_MPI}" = "openmpi" ]; then
export NF_CONFIG=/opt/gfortransoft/openmpi/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/gfortransoft/openmpi/netcdf4/include
fi
else
export NF_CONFIG=/opt/gfortransoft/serial/netcdf4/bin/nf-config
export NETCDF_INCDIR=/opt/gfortransoft/serial/netcdf4/include
fi
else
export NETCDF_INCDIR=/opt/gfortransoft/serial/netcdf3/include
export NETCDF_LIBDIR=/opt/gfortransoft/serial/netcdf3/lib
fi
;;

esac
fi

# The rest of this script sets the path to the users header file and
# analytical source files, if any. See the templates in User/Functionals.
#
# If applicable, use the MY_ANALYTICAL_DIR directory to place your
# customized biology model header file (like fennel.h, nemuro.h, ecosim.h,
# etc).

# export MY_HEADER_DIR=${MY_PROJECT_DIR}/ROMS/Include
# export MY_ANALYTICAL_DIR=${MY_PROJECT_DIR}/ROMS/Functionals
export MY_HEADER_DIR=${MY_PROJECT_DIR}/Projects/Sandy
export MY_ANALYTICAL_DIR=${MY_PROJECT_DIR}/Projects/Sandy

# Put the binary to execute in the following directory.

# export BINDIR=${MY_PROJECT_DIR}
export BINDIR=./

# Put the f90 files in a project specific Build directory to avoid conflict
# with other projects.

# export SCRATCH_DIR=${MY_PROJECT_DIR}/Build
export SCRATCH_DIR=./Build

# Go to the users source directory to compile. The options set above will
# pick up the application-specific code from the appropriate place.

cd ${MY_ROMS_SRC}

# Remove build directory.

if [ $clean -eq 1 ]; then
make clean
fi

# Compile (the binary will go to BINDIR set above).

export WRF_DIR=${MY_ROMS_SRC}/WRF
if [ $cleanwrf -eq 1 ]; then
make wrfclean
cd ${MY_ROMS_SRC}
fi
make wrf

if [ $parallel -eq 1 ]; then
make $NCPUS
else
make
fi

[jcwarner]

it would be best to post this on the coawst issue site:
https://github.com/DOI-USGS/COAWST/issues
and include the full output, not just those last few lines.

[yxli]

The complete run.log is as follows:

[yxli]

it would be best to post this on the coawst issue site:
https://github.com/DOI-USGS/COAWST/issues
and include the full output, not just those last few lines.

Thank you for the reminder. I have posted the same content on the website you provided.

The complete run.log is as follows:

[yxli]

it would be best to post this on the coawst issue site:
https://github.com/DOI-USGS/COAWST/issues
and include the full output, not just those last few lines.

[yxli]

it would be best to post this on the coawst issue site:
https://github.com/DOI-USGS/COAWST/issues
and include the full output, not just those last few lines.

I have solved this problem, it should still be an issue with the mpi compiler selection.
