I encountered too small and abnormal M2 tide amplitude result compared to observation data.
The tidal forcing is from the TPXO 7.2.

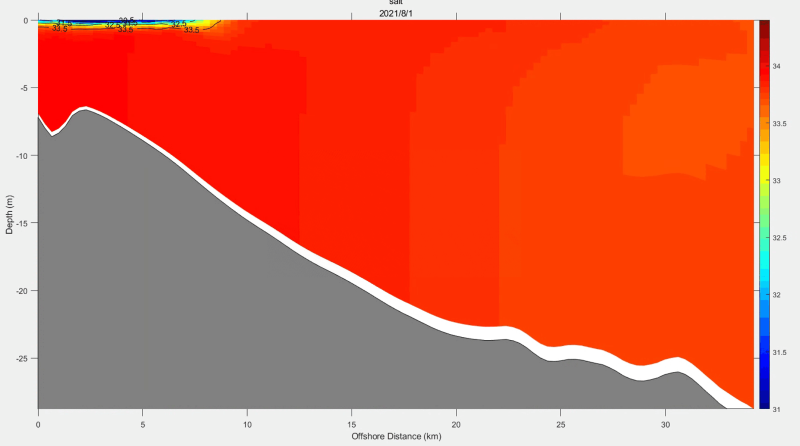

This reslut in the weak surface mixing.（or maybe tide is not the only factor affect mixing，but my m2 tide amplitude model result is too sall）
I've tried different 2D momentum boundry condition, the results didn't get any better. And I've also tried several advection and mixing (MY-25 and LMD) schemes, but the results didn't get any better.
Thanks for your tips.

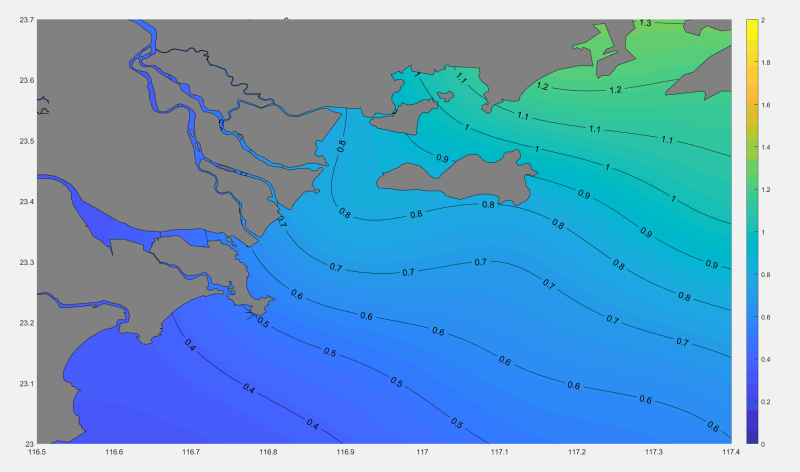

In fact, the M2 tidal amplitude in the tidal forcing file or the observation data is 0.6
but the result of M2 tidal amplitude of the model is 0.08
-------------------------------------------------------------------------------------------------------------------
Here is my CPP option
Code: Select all
/***************** Model dynamics */
#define SOLVE3D
#define UV_ADV
#define UV_COR
#define UV_QDRAG
#define DJ_GRADPS
/************ Grid configuration */
#define MASKING
#define SPHERICAL
#define CURVGRID
/**** Mixing ********************/
#define TS_DIF2
#define MIX_GEO_TS
#define UV_VIS2
#define MIX_S_UV
/*#define MY25_MIXING*/
#define DIFF_GRID
#define VISC_GRID
#define TS_SMAGORINSKY
#define UV_SMAGORINSKY
#define LMD_MIXING
# ifdef MY25_MIXING
# define KANTHA_CLAYSON
# define N2S2_HORAVG
# define RI_SPLINES
# endif
# ifdef LMD_MIXING
# define LMD_RIMIX
# define LMD_CONVEC
# define LMD_SKPP
# define LMD_BKPP
# define LMD_NONLOCAL
# define LMD_DDMIX
# define RI_SPLINES
# endif
/**** Equation of State *********/
#define NONLIN_EOS
#define SPLINES_VDIFF
#define SPLINES_VVISC
#define SALINITY
/*************** Surface Forcing */
# define SOLAR_SOURCE
# define QCORRECTION
# define DIURNAL_SRFLUX
/************** Other options ***/
#define RADIATION_2D
#define AVERAGES
#define ANA_BTFLUX
#define ANA_BSFLUX
#define LIMIT_BSTRESS
/*#define LIMIT_VVISC
#define LIMIT_VDIFF*/
# define WTYPE_GRID
# define ANA_WTYPE
/*#define ANA_SPONGE*/
/*#define ANA_SMFLUX*/
/*#define ANA_SMFLUX*/
/*#define ANA_STFLUX*/
/*#define ANA_SSFLUX*/
/*#define ANA_SRFLUX*/
/******** Tide ************/
# define RAMP_TIDES
# define SSH_TIDES
# define UV_TIDES
# define ADD_M2OBC
# define ADD_FSOBC
/* nudging the time in *.in shall be set */
#undef OUT_DOUBLE
#define RST_SINGLEHere is the log
Code: Select all
--------------------------------------------------------------------------------
Model Input Parameters: ROMS/TOMS version 4.1
Tuesday - September 27, 2022 - 3:45:40 AM
--------------------------------------------------------------------------------
Hanjiang River Plume
Operating system : Linux
CPU/hardware : x86_64
Compiler system : gfortran
Compiler command : /usr/local/mpich-3.4.3/bin/mpif90
Compiler flags : -frepack-arrays -fallow-argument-mismatch -O3 -ffast-math -
OCN Communicator : 1140850688, PET size = 72
Input Script : upwelling.in
SVN Root URL :
SVN Revision :
Local Root : /home/21rqqiao/roms/roms
Header Dir : /home/21rqqiao/roms/roms
Header file : upwelling.h
Analytical Dir : /home/21rqqiao/roms/roms/User/Functionals
Resolution, Grid 01: 678x403x30, Parallel Nodes: 72, Tiling: 8x9
Physical Parameters, Grid: 01
=============================
147808 ntimes Number of timesteps for 3-D equations.
75.000 dt Timestep size (s) for 3-D equations.
30 ndtfast Number of timesteps for 2-D equations between
each 3D timestep.
1 ERstr Starting ensemble/perturbation run number.
1 ERend Ending ensemble/perturbation run number.
0 nrrec Number of restart records to read from disk.
T LcycleRST Switch to recycle time-records in restart file.
1192 nRST Number of timesteps between the writing of data
into restart fields.
1 ninfo Number of timesteps between print of information
to standard output.
T ldefout Switch to create a new output NetCDF file(s).
48 nHIS Number of timesteps between the writing fields
into history file.
100000 ndefHIS Number of timesteps between creation of new
history files.
0 nQCK Number of timesteps between the writing fields
into quicksave file.
0 ntsAVG Starting timestep for the accumulation of output
time-averaged data.
1192 nAVG Number of timesteps between the writing of
time-averaged data into averages file.
0 ntsDIA Starting timestep for the accumulation of output
time-averaged diagnostics data.
0 nDIA Number of timesteps between the writing of
time-averaged data into diagnostics file.
2.0000E+00 nl_tnu2(01) NLM Horizontal, harmonic mixing coefficient
(m2/s) for tracer 01: temp
2.0000E+00 nl_tnu2(02) NLM Horizontal, harmonic mixing coefficient
(m2/s) for tracer 02: salt
2.5000E+01 nl_visc2 NLM Horizontal, harmonic mixing coefficient
(m2/s) for momentum.
F LuvSponge Turning OFF sponge on horizontal momentum.
F LtracerSponge(01) Turning OFF sponge on tracer 01: temp
F LtracerSponge(02) Turning OFF sponge on tracer 02: salt
5.0000E-06 Akt_bak(01) Background vertical mixing coefficient (m2/s)
for tracer 01: temp
5.0000E-06 Akt_bak(02) Background vertical mixing coefficient (m2/s)
for tracer 02: salt
5.0000E-06 Akv_bak Background vertical mixing coefficient (m2/s)
for momentum.
3.0000E-04 rdrg Linear bottom drag coefficient (m/s).
2.5000E-03 rdrg2 Quadratic bottom drag coefficient.
2.0000E-02 Zob Bottom roughness (m).
1 lmd_Jwt Jerlov water type.
2 Vtransform S-coordinate transformation equation.
4 Vstretching S-coordinate stretching function.
3.0000E+00 theta_s S-coordinate surface control parameter.
4.0000E-01 theta_b S-coordinate bottom control parameter.
3.000 Tcline S-coordinate surface/bottom layer width (m) used
in vertical coordinate stretching.
1025.000 rho0 Mean density (kg/m3) for Boussinesq approximation.
44315.000 dstart Time-stamp assigned to model initialization (days).
0.000 tide_start Reference time origin for tidal forcing (days).
19000101.00 time_ref Reference time for units attribute (yyyymmdd.dd)
1.0000E+00 Tnudg(01) Nudging/relaxation time scale (days)
for tracer 01: temp
1.0000E+00 Tnudg(02) Nudging/relaxation time scale (days)
for tracer 02: salt
3.0000E+01 Znudg Nudging/relaxation time scale (days)
for free-surface.
3.0000E+01 M2nudg Nudging/relaxation time scale (days)
for 2D momentum.
3.0000E+01 M3nudg Nudging/relaxation time scale (days)
for 3D momentum.
1.0000E+01 obcfac Factor between passive and active
open boundary conditions.
F VolCons(1) NLM western edge boundary volume conservation.
F VolCons(2) NLM southern edge boundary volume conservation.
F VolCons(3) NLM eastern edge boundary volume conservation.
F VolCons(4) NLM northern edge boundary volume conservation.
10.000 T0 Background potential temperature (C) constant.
34.000 S0 Background salinity (PSU) constant.
1.000 gamma2 Slipperiness variable: free-slip (1.0) or
no-slip (-1.0).
T LuvSrc Turning ON momentum point Sources/Sinks.
F LwSrc Turning OFF volume influx point Sources/Sinks.
T LtracerSrc(01) Turning ON point Sources/Sinks on tracer 01: temp
T LtracerSrc(02) Turning ON point Sources/Sinks on tracer 02: salt
F LsshCLM Turning OFF processing of SSH climatology.
F Lm2CLM Turning OFF processing of 2D momentum climatology.
T Lm3CLM Turning ON processing of 3D momentum climatology.
T LtracerCLM(01) Turning ON processing of climatology tracer 01: temp
T LtracerCLM(02) Turning ON processing of climatology tracer 02: salt
F LnudgeM2CLM Turning OFF nudging of 2D momentum climatology.
T LnudgeM3CLM Turning ON nudging of 3D momentum climatology.
T LnudgeTCLM(01) Turning ON nudging of climatology tracer 01: temp
T LnudgeTCLM(02) Turning ON nudging of climatology tracer 02: salt
T Hout(idFsur) Write out free-surface.
T Hout(idUvel) Write out 3D U-momentum component.
T Hout(idVvel) Write out 3D V-momentum component.
T Hout(idTvar) Write out tracer 01: temp
T Hout(idTvar) Write out tracer 02: salt
T Hout(idVvis) Write out vertical viscosity: AKv.
T Hout(idSdif) Write out vertical diffusion: AKt(isalt).
T Aout(idFsur) Write out averaged free-surface.
T Aout(idUvel) Write out averaged 3D U-momentum component.
T Aout(idVvel) Write out averaged 3D V-momentum component.
T Aout(idTvar) Write out averaged tracer 01: temp
T Aout(idTvar) Write out averaged tracer 02: salt
T Aout(idDano) Write out averaged density anomaly.
T Aout(idVvis) Write out averaged vertical viscosity: AKv.
T Aout(idSdif) Write out averaged vertical diffusion: AKt(isalt).
T Aout(idHsbl) Write out averaged depth of surface boundary layer.
T Aout(idHbbl) Write out averaged depth of bottom boundary layer.
1 inp_lib Using standard NetCDF library for input files.
1 out_lib Using standard NetCDF library for output files.
ROMS I/O variables Metadata File: ROMS/External/varinfo.yaml
TIDE_DATE - Checking tidal reference date for zero phase:
'zero_phase_date' variable not found in: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_tide.nc
given tide_start = 0.0000 (days)
tide_DateNumber = 693962.0000 (1900-01-01 00:00:00)
Tile partition information for Grid 01: 678x403x30 tiling: 8x9
Maximum halo size in XI and ETA directions:
HaloSizeI(1) = 194
HaloSizeJ(1) = 114
TileSide(1) = 91
TileSize(1) = 4641
Tracer Advection Scheme: NLM
========================
Variable Grid Horizontal Vertical
--------- ---- ------------ ------------
temp 1 Centered4 Centered4
salt 1 Centered4 Centered4
Akima4 Fourth-order Akima advection
Centered2 Second-order centered differences advection
Centered4 Fourth-order centered differences advection
HSIMT Third High-order Spatial Inteporlation at Middle Time Advection with TVD limiter
MPDATA Multidimensional Positive Definite Advection Algorithm, recursive method
Splines Conservative Parabolic Splines Reconstruction Advection (only vertical; not recommended)
Split_U3 Split third-order Upstream Advection
Upstream3 Third-order Upstream-biased Advection (only horizontal)
Lateral Boundary Conditions: NLM
============================
Variable Grid West Edge South Edge East Edge North Edge
--------- ---- ---------- ---------- ---------- ----------
zeta 1 Closed Chapman Imp Chapman Imp Closed
ubar 1 Closed Flather Flather Closed
vbar 1 Closed Flather Flather Closed
u 1 Closed Rad + Nud Rad + Nud Closed
v 1 Closed Rad + Nud Rad + Nud Closed
temp 1 Closed Rad + Nud Rad + Nud Closed
salt 1 Closed Rad + Nud Rad + Nud Closed
Activated C-preprocessing Options:
RIVERPLUME Hanjiang River Plume
ADD_FSOBC Adding tidal elevation to processed OBC data
ADD_M2OBC Adding tidal currents to processed OBC data
ANA_BSFLUX Analytical kinematic bottom salinity flux
ANA_BTFLUX Analytical kinematic bottom temperature flux
ANA_WTYPE Analytical spatially varying Jerlov water type index
ASSUMED_SHAPE Using assumed-shape arrays
AVERAGES Writing out time-averaged nonlinear model fields
BOUNDARY_ALLREDUCE Using mpi_allreduce in mp_boundary routine
COLLECT_ALLREDUCE Using mpi_allreduce in mp_collect routine
CURVGRID Orthogonal curvilinear grid
DIAGNOSTICS_UV Computing and writing momentum diagnostic terms
DIFF_3DCOEF Horizontal, time-dependent 3D diffusion coefficient
DIFF_GRID Horizontal diffusion coefficient scaled by grid size
DIURNAL_SRFLUX Modulate shortwave radiation by the local diurnal cycle
DJ_GRADPS Parabolic Splines density Jacobian (Shchepetkin, 2002)
DOUBLE_PRECISION Double precision arithmetic numerical kernel.
LIMIT_BSTRESS Limit bottom stress to maintain bottom velocity direction
LMD_BKPP KPP bottom boundary layer mixing
LMD_CONVEC LMD convective mixing due to shear instability
LMD_DDMIX LMD double-diffusive mixing
LMD_MIXING Large/McWilliams/Doney interior mixing
LMD_NONLOCAL LMD convective nonlocal transport
LMD_RIMIX LMD diffusivity due to shear instability
LMD_SKPP KPP surface boundary layer mixing
MASKING Land/Sea masking
MIX_GEO_TS Mixing of tracers along geopotential surfaces
MIX_S_UV Mixing of momentum along constant S-surfaces
MPI MPI distributed-memory configuration
NONLINEAR Nonlinear Model
NONLIN_EOS Nonlinear Equation of State for seawater
POWER_LAW Power-law shape time-averaging barotropic filter
PROFILE Time profiling activated
QCORRECTION Surface net heat flux correction
RADIATION_2D Use tangential phase speed in radiation conditions
RAMP_TIDES Ramping tidal forcing for one day
REDUCE_ALLREDUCE Using mpi_allreduce in mp_reduce routine
RI_SPLINES Parabolic Spline Reconstruction for Richardson Number
RST_SINGLE Single precision fields in restart NetCDF file
SALINITY Using salinity
SOLAR_SOURCE Solar Radiation Source Term
SOLVE3D Solving 3D Primitive Equations
SPHERICAL Spherical grid configuration
SPLINES_VDIFF Parabolic Spline Reconstruction for Vertical Diffusion
SPLINES_VVISC Parabolic Spline Reconstruction for Vertical Viscosity
SSH_TIDES Adding tidal elevation to SSH climatology
TS_DIF2 Harmonic mixing of tracers
TS_SMAGORINSKY Smagorinksy-like time-dependent diffusion coefficients
UV_ADV Advection of momentum
UV_COR Coriolis term
UV_U3HADVECTION Third-order upstream horizontal advection of 3D momentum
UV_C4VADVECTION Fourth-order centered vertical advection of momentum
UV_QDRAG Quadratic bottom stress
UV_TIDES Add tidal currents to 2D momentum climatologies
UV_VIS2 Harmonic mixing of momentum
UV_SMAGORINSKY Smagorinksy-like time-dependent viscosity coefficients
VAR_RHO_2D Variable density barotropic mode
VISC_GRID Horizontal viscosity coefficient scaled by grid size
VISC_3DCOEF Horizontal, time-dependent 3D viscosity coefficient
CHECKADJ - use caution when activating: TS_SMAGORINSKY
REASON: stability problems, WARNING.
CHECKADJ - use caution when activating: UV_SMAGORINSKY
REASON: stability problems, WARNING.
Process Information:
Node # 0 (pid= 1786839) is active.
Node # 1 (pid= 1786840) is active.
Node # 2 (pid= 1786841) is active.
Node # 3 (pid= 1786842) is active.
Node # 4 (pid= 1786843) is active.
Node # 5 (pid= 1786844) is active.
Node # 6 (pid= 1786845) is active.
Node # 7 (pid= 1786846) is active.
Node # 8 (pid= 1786847) is active.
Node # 9 (pid= 1786848) is active.
Node # 10 (pid= 1786849) is active.
Node # 11 (pid= 1786850) is active.
Node # 12 (pid= 1786851) is active.
Node # 13 (pid= 1786852) is active.
Node # 14 (pid= 1786853) is active.
Node # 15 (pid= 1786854) is active.
Node # 16 (pid= 1786855) is active.
Node # 17 (pid= 1786856) is active.
Node # 18 (pid= 1786857) is active.
Node # 19 (pid= 1786858) is active.
Node # 20 (pid= 1786859) is active.
Node # 21 (pid= 1786860) is active.
Node # 22 (pid= 1786861) is active.
Node # 23 (pid= 1786862) is active.
Node # 24 (pid= 1786863) is active.
Node # 25 (pid= 1786864) is active.
Node # 26 (pid= 1786865) is active.
Node # 27 (pid= 1786866) is active.
Node # 28 (pid= 1786867) is active.
Node # 29 (pid= 1786868) is active.
Node # 30 (pid= 1786869) is active.
Node # 31 (pid= 1786870) is active.
Node # 32 (pid= 1786871) is active.
Node # 33 (pid= 1786872) is active.
Node # 34 (pid= 1786873) is active.
Node # 35 (pid= 1786874) is active.
Node # 36 (pid= 1786875) is active.
Node # 37 (pid= 1786876) is active.
Node # 38 (pid= 1786877) is active.
Node # 39 (pid= 1786878) is active.
Node # 40 (pid= 1786879) is active.
Node # 41 (pid= 1786880) is active.
Node # 42 (pid= 1786881) is active.
Node # 43 (pid= 1786882) is active.
Node # 44 (pid= 1786883) is active.
Node # 45 (pid= 1786884) is active.
Node # 46 (pid= 1786885) is active.
Node # 47 (pid= 1786886) is active.
Node # 48 (pid= 1786887) is active.
Node # 49 (pid= 1786888) is active.
Node # 50 (pid= 1786889) is active.
Node # 51 (pid= 1786890) is active.
Node # 53 (pid= 1786892) is active.
Node # 54 (pid= 1786893) is active.
Node # 55 (pid= 1786894) is active.
Node # 56 (pid= 1786895) is active.
Node # 57 (pid= 1786896) is active.
Node # 58 (pid= 1786897) is active.
Node # 59 (pid= 1786898) is active.
Node # 60 (pid= 1786899) is active.
Node # 61 (pid= 1786900) is active.
Node # 62 (pid= 1786901) is active.
Node # 63 (pid= 1786902) is active.
Node # 64 (pid= 1786903) is active.
Node # 65 (pid= 1786904) is active.
Node # 66 (pid= 1786905) is active.
Node # 67 (pid= 1786906) is active.
Node # 68 (pid= 1786907) is active.
Node # 69 (pid= 1786908) is active.
Node # 70 (pid= 1786909) is active.
Node # 71 (pid= 1786910) is active.
Node # 52 (pid= 1786891) is active.
Point Sources/Sinks grid-cell flag locations counter:
Grid: 1, file: /home/21rqqiao/roms/roms/Data/ROMS/Initial/Hanjiang.nc
LuvSrc = T u-face = 9
LuvSrc = T v-face = 0
LwSrc = F w-face = 0
INITIAL: Configuring and initializing forward nonlinear model ...
*******
GET_GRID_NF90 - angle between XI-axis and EAST: angler
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = -1.79942962E-01 Max = 1.56305444E+00)
GET_GRID_NF90 - bathymetry at RHO-points: h
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 3.00000000E+00 Max = 3.00000000E+03)
GET_GRID_NF90 - Coriolis parameter at RHO-points: f
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 4.20248309E-05 Max = 8.10971003E-05)
GET_GRID_NF90 - reciprocal XI-grid spacing: pm
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 2.55322069E-05 Max = 2.32416345E-03)
GET_GRID_NF90 - reciprocal ETA-grid spacing: pn
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.27345932E-04 Max = 2.65526570E-03)
GET_GRID_NF90 - XI-derivative of inverse metric factor pn: dndx
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = -8.99112406E+01 Max = 1.00381802E+02)
GET_GRID_NF90 - ETA-derivative of inverse metric factor pm: dmde
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = -1.71482438E+02 Max = 1.49350879E-01)
GET_GRID_NF90 - x-location of RHO-points: x-rho
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 3.37136568E+06)
GET_GRID_NF90 - x-location of U-points: x_u
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.39926436E+04 Max = 3.35458238E+06)
GET_GRID_NF90 - x-location of V-points: x_v
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 3.36829988E+06)
GET_GRID_NF90 - x-location of PSI-points: x_psi
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.40338257E+04 Max = 3.35154083E+06)
GET_GRID_NF90 - y-location of RHO-points: y_rho
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 5.90092190E+05)
GET_GRID_NF90 - y-location of U-points: y_u
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 5.85734762E+05)
GET_GRID_NF90 - y-location of V-points: y_v
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.25213111E+03 Max = 5.86198109E+05)
GET_GRID_NF90 - y-location of PSI-points: y-psi
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.25226748E+03 Max = 5.81863066E+05)
GET_GRID_NF90 - longitude of RHO-points: lon_rho
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.03375440E+02 Max = 1.25442520E+02)
GET_GRID_NF90 - longitude of U-points: lon_u
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.03560510E+02 Max = 1.25440540E+02)
GET_GRID_NF90 - longitude of V-points: lon_v
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.03379040E+02 Max = 1.25425970E+02)
GET_GRID_NF90 - longitude of PSI-points: lon_psi
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.03563955E+02 Max = 1.25423987E+02)
GET_GRID_NF90 - latitude of RHO-points lat_rho
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.67945930E+01 Max = 3.38887820E+01)
GET_GRID_NF90 - latitude of U-points: lat_u
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.67949770E+01 Max = 3.37776815E+01)
GET_GRID_NF90 - latitude of V-points: lat_v
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.68115125E+01 Max = 3.38883325E+01)
GET_GRID_NF90 - latitude of PSI-points lat_psi
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 1.68118850E+01 Max = 3.37772025E+01)
GET_GRID_NF90 - mask on RHO-points: mask_rho
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 1.00000000E+00)
GET_GRID_NF90 - mask on U-points: mask_u
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 1.00000000E+00)
GET_GRID_NF90 - mask on V-points: mask_v
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 1.00000000E+00)
GET_GRID_NF90 - mask on PSI-points: mask_psi
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/ST_grid.nc)
(Min = 0.00000000E+00 Max = 1.00000000E+00)
Vertical S-coordinate System, Grid 01:
level S-coord Cs-curve Z at hmin at hc half way at hmax
30 0.0000000 0.0000000 0.000 0.000 0.000 0.000
29 -0.0333333 -0.0006695 -0.051 -0.051 -1.103 -2.106
28 -0.0666667 -0.0026838 -0.104 -0.104 -4.221 -8.243
27 -0.1000000 -0.0060605 -0.159 -0.159 -9.381 -18.463
26 -0.1333333 -0.0108285 -0.216 -0.216 -16.626 -32.853
25 -0.1666667 -0.0170290 -0.276 -0.276 -26.017 -51.535
24 -0.2000000 -0.0247149 -0.337 -0.337 -37.634 -74.670
23 -0.2333333 -0.0339514 -0.401 -0.401 -51.575 -102.452
22 -0.2666667 -0.0448161 -0.467 -0.467 -67.956 -135.113
21 -0.3000000 -0.0573991 -0.536 -0.536 -86.911 -172.924
20 -0.3333333 -0.0718033 -0.608 -0.608 -108.596 -216.194
19 -0.3666667 -0.0881450 -0.682 -0.682 -133.184 -265.270
18 -0.4000000 -0.1065532 -0.760 -0.760 -160.868 -320.539
17 -0.4333333 -0.1271703 -0.841 -0.841 -191.863 -382.429
16 -0.4666667 -0.1501521 -0.925 -0.925 -226.401 -451.405
15 -0.5000000 -0.1756670 -1.014 -1.014 -264.735 -527.973
14 -0.5333333 -0.2038961 -1.106 -1.106 -307.136 -612.676
13 -0.5666667 -0.2350323 -1.203 -1.203 -353.894 -706.091
12 -0.6000000 -0.2692794 -1.304 -1.304 -405.313 -808.829
11 -0.6333333 -0.3068504 -1.410 -1.410 -461.713 -921.530
10 -0.6666667 -0.3479655 -1.522 -1.522 -523.424 -1044.852
9 -0.7000000 -0.3928500 -1.639 -1.639 -590.784 -1179.470
8 -0.7333333 -0.4417302 -1.763 -1.763 -664.131 -1326.065
7 -0.7666667 -0.4948299 -1.892 -1.892 -743.801 -1485.305
6 -0.8000000 -0.5523651 -2.029 -2.029 -830.118 -1657.837
5 -0.8333333 -0.6145374 -2.172 -2.172 -923.383 -1844.268
4 -0.8666667 -0.6815273 -2.322 -2.322 -1023.868 -2045.137
3 -0.9000000 -0.7534850 -2.480 -2.480 -1131.796 -2260.894
2 -0.9333333 -0.8305209 -2.646 -2.646 -1247.335 -2491.871
1 -0.9666667 -0.9126940 -2.819 -2.819 -1370.572 -2738.244
0 -1.0000000 -1.0000000 -3.000 -3.000 -1501.500 -3000.000
Time Splitting Weights for Grid 01: ndtfast = 30 nfast = 42
==================================
Primary Secondary Accumulated to Current Step
1-0.0008094437383769 0.0333333333333333-0.0008094437383769 0.0333333333333333
2-0.0014053566728197 0.0333603147912792-0.0022148004111966 0.0666936481246126
3-0.0017877524645903 0.0334071600137066-0.0040025528757869 0.1001008081383191
4-0.0019566842408176 0.0334667517625262-0.0059592371166046 0.1335675599008453
5-0.0019122901320372 0.0335319745705535-0.0078715272486418 0.1670995344713988
6-0.0016548570247459 0.0335957175749547-0.0095263842733877 0.2006952520463536
7-0.0011849025289723 0.0336508794757796-0.0107112868023600 0.2343461315221331
8-0.0005032751608631 0.0336903762267453-0.0112145619632232 0.2680365077488784
9 0.0003887272597151 0.0337071520654408-0.0108258347035081 0.3017436598143192
10 0.0014892209965583 0.0336941944901169-0.0093366137069498 0.3354378543044362
11 0.0027955815694920 0.0336445537902317-0.0065410321374578 0.3690824080946679
12 0.0043042707117221 0.0335513677379153-0.0022367614257357 0.4026337758325831
13 0.0060106451121704 0.0334078920475245 0.0037738836864347 0.4360416678801076
14 0.0079087469427945 0.0332075372104522 0.0116826306292293 0.4692492050905598
15 0.0099910761708920 0.0329439123123590 0.0216737068001212 0.5021931174029188
16 0.0122483446563884 0.0326108764399960 0.0339220514565096 0.5348039938429148
17 0.0146692120341107 0.0322025982847830 0.0485912634906203 0.5670065921276978
18 0.0172400033810439 0.0317136245503127 0.0658312668716642 0.5987202166780105
19 0.0199444086685725 0.0311389577709445 0.0857756755402367 0.6298591744489550
20 0.0227631639997064 0.0304741441486588 0.1085388395399431 0.6603333185976138
21 0.0256737146312910 0.0297153720153352 0.1342125541712341 0.6900486906129490
22 0.0286498597812016 0.0288595815276255 0.1628624139524357 0.7189082721405746
23 0.0316613792205220 0.0279045862015855 0.1945237931729577 0.7468128583421600
24 0.0346736416507075 0.0268492068942347 0.2291974348236651 0.7736620652363948
25 0.0376471948657328 0.0256934188392112 0.2668446296893979 0.7993554840756060
26 0.0405373376992232 0.0244385123436867 0.3073819673886211 0.8237939964192927
27 0.0432936737565711 0.0230872677537126 0.3506756411451922 0.8468812641730054
28 0.0458596469320356 0.0216441452951603 0.3965352880772278 0.8685254094681656
29 0.0481720587108284 0.0201154903974257 0.4447073467880562 0.8886408998655914
30 0.0501605672561820 0.0185097551070648 0.4948679140442381 0.9071506549726561
31 0.0517471682814030 0.0168377361985254 0.5466150823256412 0.9239883911711815
32 0.0528456577069106 0.0151128305891453 0.5994607400325517 0.9391012217603267
33 0.0533610761022577 0.0133513086655816 0.6528218161348094 0.9524525304259084
34 0.0531891349131379 0.0115726061288397 0.7060109510479473 0.9640251365547481
35 0.0522156244733761 0.0097996349650684 0.7582265755213234 0.9738247715198165
36 0.0503158038019031 0.0080591141492892 0.8085423793232265 0.9818838856691057
37 0.0473537721847153 0.0063819206892258 0.8558961515079418 0.9882658063583315
38 0.0431818225418188 0.0048034616164019 0.8990779740497606 0.9930692679747335
39 0.0376397765791564 0.0033640675316746 0.9367177506289170 0.9964333355064081
40 0.0305543017255206 0.0021094083123694 0.9672720523544377 0.9985427438187775
41 0.0217382098544505 0.0010909315881854 0.9890102622088881 0.9996336754069629
42 0.0109897377911119 0.0003663245930371 1.0000000000000000 1.0000000000000000
ndtfast, nfast = 30 42 nfast/ndtfast = 1.40000
Centers of gravity and integrals (values must be 1, 1, approx 1/2, 1, 1):
1.000000000000 1.047601458608 0.523800729304 1.000000000000 1.000000000000
Power filter parameters, Fgamma, gamma = 0.28400 0.18933
Metrics information for Grid 01:
===============================
Minimum X-grid spacing, DXmin = 4.30262339E-01 km Water points = 4.68777884E-01 km
Maximum X-grid spacing, DXmax = 3.91662188E+01 km Water points = 3.35665985E+01 km
Minimum Y-grid spacing, DYmin = 3.76610144E-01 km Water points = 3.76610144E-01 km
Maximum Y-grid spacing, DYmax = 7.85262616E+00 km Water points = 7.72786401E+00 km
Minimum Z-grid spacing, DZmin = 5.10042627E-02 m Water points = 5.10042627E-02 m
Maximum Z-grid spacing, DZmax = 2.61756270E+02 m Water points = 2.61756270E+02 m
Minimum barotropic Courant Number = 3.42602393E-03
Maximum barotropic Courant Number = 7.35849651E-01
Maximum Coriolis Courant Number = 6.08228252E-03
Horizontal mixing scaled by grid area squared root, MAXVAL(grdscl) = 1.25607878E+01 km (Water points)
Minimum horizontal diffusion coefficient = 3.91374421E+00 m2/s
Maximum horizontal diffusion coefficient = 1.23388747E+02 m2/s
Minimum horizontal viscosity coefficient = 3.91374421E+00 m2/s
Maximum horizontal viscosity coefficient = 1.23388747E+02 m2/s
GET_NUDGCOEF_NF90 - 3D momentum inverse nudging coefficients: M3_NudgeCoef
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/nudgcoef_b.nc)
(Min = 0.00000000E+00 Max = 4.62962963E-07)
GET_NUDGCOEF_NF90 - potential temperature, inverse nudging coefficients: temp_NudgeCoef
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/nudgcoef_b.nc)
(Min = 0.00000000E+00 Max = 4.62962963E-07)
GET_NUDGCOEF_NF90 - salinity, inverse nudging coefficients: salt_NudgeCoef
(Grid = 01, File: /home/21rqqiao/roms/roms/Data/ROMS/Initial/nudgcoef_b.nc)
(Min = 0.00000000E+00 Max = 4.62962963E-07)
GET_STATE_NF90 - NLM: state initial conditions, 2021-05-01 00:00:00.00
(Grid 01, t = 44315.0000, File: Yuedong_ini_ECCO_Y2021M5.nc, Rec=0001, Index=1)
- free-surface
(Min = 2.50249269E-01 Max = 1.12928637E+00)
- vertically integrated u-momentum component
(Min = -6.30954225E-02 Max = 4.86638912E-02)
- vertically integrated v-momentum component
(Min = -4.20696065E-02 Max = 7.15219872E-02)
- u-momentum component
(Min = -3.57840844E-01 Max = 5.21045566E-01)
- v-momentum component
(Min = -8.55738064E-01 Max = 1.08812017E+00)
- potential temperature
(Min = 2.17789190E+00 Max = 2.89318040E+01)
- salinity
(Min = 3.02262479E+01 Max = 3.46201475E+01)
GET_NGFLD_NF90 - tidal period
(Grid = 01, Min = 4.30819210E+04 Max = 2.38071599E+06)
GET_2DFLD_NF90 - tidal elevation amplitude
(Grid = 01, Min = 5.56285643E-05 Max = 1.82574356E+01)
GET_2DFLD_NF90 - tidal elevation phase angle
(Grid = 01, Min = 4.96871998E-06 Max = 6.28317701E+00)
GET_2DFLD_NF90 - tidal current inclination angle
(Grid = 01, Min = 7.31209536E-07 Max = 6.28318107E+00)
GET_2DFLD_NF90 - tidal current phase angle
(Grid = 01, Min = 5.76077037E-06 Max = 6.28318179E+00)
GET_2DFLD_NF90 - maximum tidal current, ellipse major axis
(Grid = 01, Min = 2.63947613E-06 Max = 1.96808252E+00)
GET_2DFLD_NF90 - minimum tidal current, ellipse minor axis
(Grid = 01, Min = -6.30073752E-01 Max = 5.05945978E-01)
GET_NGFLD_NF90 - river runoff XI-positions at RHO-points
(Grid = 01, Min = 5.30000000E+01 Max = 6.70000000E+02)
GET_NGFLD_NF90 - river runoff ETA-positions at RHO-points
(Grid = 01, Min = 3.77000000E+02 Max = 4.04000000E+02)
GET_NGFLD_NF90 - river runoff direction
(Grid = 01, Min = 0.00000000E+00 Max = 0.00000000E+00)
GET_NGFLD_NF90 - river runoff mass transport vertical profile
(Grid = 01, Min = 3.33333333E-02 Max = 3.33333333E-02)
GET_NGFLD_NF90 - river runoff mass transport, 2021-02-19 00:00:00.00
(Grid= 01, Rec=50, Index=2, File: Hanjiang.nc)
(Tmin= 44195.0000 Tmax= 44638.0000) t = 44244.0000
(Min = 1.24666670E+02 Max = 1.12000000E+04)
GET_NGFLD_NF90 - river runoff potential temperature, 2021-02-19 00:00:00.00
(Grid= 01, Rec=50, Index=2, File: Hanjiang.nc)
(Tmin= 44195.0000 Tmax= 44638.0000) t = 44244.0000
(Min = 1.65484444E+01 Max = 1.65484444E+01)
GET_NGFLD_NF90 - river runoff salinity, 2021-02-19 00:00:00.00
(Grid= 01, Rec=50, Index=2, File: Hanjiang.nc)
(Tmin= 44195.0000 Tmax= 44638.0000) t = 44244.0000
(Min = 0.00000000E+00 Max = 0.00000000E+00)
GET_2DFLD_NF90 - surface u-momentum stress, 2021-04-30 18:00:00.00
(Grid=01, Rec=4, Index=1, File: ST_frc_new1.nc)
(Tmin= 44314.0000 Tmax= 44376.7500) t = 44314.7500
(Min = -1.26594052E-04 Max = 2.90227340E-05) regrid = F
GET_2DFLD_NF90 - surface v-momentum stress, 2021-04-30 18:00:00.00
(Grid=01, Rec=4, Index=1, File: ST_frc_new1.nc)
(Tmin= 44314.0000 Tmax= 44376.7500) t = 44314.7500
(Min = -1.95739635E-04 Max = 7.85255581E-05) regrid = F
GET_2DFLD_NF90 - net solar shortwave radiation flux, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = 4.72144785E-05 Max = 6.62287306E-05) regrid = F
GET_2DFLD_NF90 - surface net heat flux, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = -1.43536050E-05 Max = 3.33501383E-05) regrid = F
GET_2DFLD_NF90 - sea surface temperature climatology, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = 9.10685860E+00 Max = 2.74500008E+01) regrid = F
GET_2DFLD_NF90 - surface net heat flux sensitivity to SST, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = -1.05751368E-05 Max = -5.28289999E-06) regrid = F
GET_2DFLD_NF90 - data surface net freshwater flux, (E-P)/rhow, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = -8.99064706E-08 Max = 3.35863642E-08) regrid = F
GET_NGFLD_NF90 - free-surface eastern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = 2.50249269E-01 Max = 3.33052880E-01)
GET_NGFLD_NF90 - free-surface southern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = 3.27961978E-01 Max = 1.12350350E+00)
GET_NGFLD_NF90 - 2D u-momentum eastern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -4.28626576E-04 Max = 5.62721167E-04)
GET_NGFLD_NF90 - 2D v-momentum eastern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -2.77192669E-04 Max = 3.14600176E-04)
GET_NGFLD_NF90 - 2D u-momentum southern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -5.32939421E-02 Max = 2.56420099E-02)
GET_NGFLD_NF90 - 2D v-momentum southern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -3.99476294E-02 Max = 7.15219872E-02)
GET_NGFLD_NF90 - 3D u-momentum eastern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -4.78231996E-02 Max = 3.79219202E-02)
GET_NGFLD_NF90 - 3D v-momentum eastern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -3.30947583E-02 Max = 4.26176135E-02)
GET_NGFLD_NF90 - 3D u-momentum southern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -2.71985247E-01 Max = 5.21045566E-01)
GET_NGFLD_NF90 - 3D v-momentum southern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = -8.55738064E-01 Max = 1.08812017E+00)
GET_NGFLD_NF90 - temperature eastern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = 9.48885098E+00 Max = 1.54457965E+01)
GET_NGFLD_NF90 - salinity eastern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = 3.10616224E+01 Max = 3.35300721E+01)
GET_NGFLD_NF90 - temperature southern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = 2.17789190E+00 Max = 2.89318040E+01)
GET_NGFLD_NF90 - salinity southern boundary condition, 2021-04-30 00:00:00.00
(Grid= 01, Rec=1, Index=2, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44314.0000
(Min = 3.16789866E+01 Max = 3.46201475E+01)
GET_3DFLD_NF90 - u-momentum component climatology, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = -4.03473266E-01 Max = 6.87254525E-01)
GET_3DFLD_NF90 - v-momentum component climatology, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = -5.23833438E-01 Max = 5.24011684E-01)
GET_3DFLD_NF90 - potential temperature climatology, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = 0.00000000E+00 Max = 2.92570029E+01)
GET_3DFLD_NF90 - salinity climatology, 1900-04-17 12:45:04.00
(Grid=01, Rec=4, Index=1, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 106.5313
(Min = 3.11222754E+01 Max = 3.50000000E+01)
Basin information for Grid 01:
Maximum grid stiffness ratios: rx0 = 3.000000E-01 (Beckmann and Haidvogel)
rx1 = 8.161356E+00 (Haney)
Initial domain volumes: TotVolume = 3.0614181190E+14 m3
MinCellVol = 1.2314025737E+04 m3
MaxCellVol = 1.2757833010E+10 m3
Max/Min = 1.0360407947E+06
NL ROMS/TOMS: started time-stepping: (Grid: 01 TimeSteps: 000000000001 - 000000147808)
GET_NGFLD_NF90 - river runoff mass transport, 2022-03-20 00:00:00.00
(Grid= 01, Rec=51, Index=1, File: Hanjiang.nc)
(Tmin= 44195.0000 Tmax= 44638.0000) t = 44638.0000
(Min = 1.22666667E+02 Max = 1.12000000E+04)
GET_NGFLD_NF90 - river runoff potential temperature, 2022-03-20 00:00:00.00
(Grid= 01, Rec=51, Index=1, File: Hanjiang.nc)
(Tmin= 44195.0000 Tmax= 44638.0000) t = 44638.0000
(Min = 1.69004134E+01 Max = 1.69004134E+01)
GET_NGFLD_NF90 - river runoff salinity, 2022-03-20 00:00:00.00
(Grid= 01, Rec=51, Index=1, File: Hanjiang.nc)
(Tmin= 44195.0000 Tmax= 44638.0000) t = 44638.0000
(Min = 0.00000000E+00 Max = 0.00000000E+00)
GET_2DFLD_NF90 - surface u-momentum stress, 2021-05-01 00:00:00.00
(Grid=01, Rec=5, Index=2, File: ST_frc_new1.nc)
(Tmin= 44314.0000 Tmax= 44376.7500) t = 44315.0000
(Min = -1.78876892E-04 Max = 9.21818476E-05) regrid = F
GET_2DFLD_NF90 - surface v-momentum stress, 2021-05-01 00:00:00.00
(Grid=01, Rec=5, Index=2, File: ST_frc_new1.nc)
(Tmin= 44314.0000 Tmax= 44376.7500) t = 44315.0000
(Min = -1.38473064E-04 Max = 2.80410051E-05) regrid = F
GET_2DFLD_NF90 - net solar shortwave radiation flux, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = 5.30203717E-05 Max = 6.88657458E-05) regrid = F
GET_2DFLD_NF90 - surface net heat flux, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = 9.82776273E-06 Max = 3.86719500E-05) regrid = F
GET_2DFLD_NF90 - sea surface temperature climatology, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = 1.35000000E+01 Max = 2.92500000E+01) regrid = F
GET_2DFLD_NF90 - surface net heat flux sensitivity to SST, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = -1.02598503E-05 Max = -5.54481490E-06) regrid = F
GET_2DFLD_NF90 - data surface net freshwater flux, (E-P)/rhow, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_frc_new1.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = -6.94307630E-08 Max = 2.44499032E-08) regrid = F
GET_NGFLD_NF90 - free-surface eastern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = 2.50249269E-01 Max = 3.33052880E-01)
GET_NGFLD_NF90 - free-surface southern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = 3.27961978E-01 Max = 1.12350350E+00)
GET_NGFLD_NF90 - 2D u-momentum eastern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -4.28626576E-04 Max = 5.62721167E-04)
GET_NGFLD_NF90 - 2D v-momentum eastern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -2.77192669E-04 Max = 3.14600176E-04)
GET_NGFLD_NF90 - 2D u-momentum southern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -5.32939421E-02 Max = 2.56420099E-02)
GET_NGFLD_NF90 - 2D v-momentum southern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -3.99476294E-02 Max = 7.15219872E-02)
GET_NGFLD_NF90 - 3D u-momentum eastern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -4.78231996E-02 Max = 3.79219202E-02)
GET_NGFLD_NF90 - 3D v-momentum eastern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -3.30947583E-02 Max = 4.26176135E-02)
GET_NGFLD_NF90 - 3D u-momentum southern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -2.71985247E-01 Max = 5.21045566E-01)
GET_NGFLD_NF90 - 3D v-momentum southern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = -8.55738064E-01 Max = 1.08812017E+00)
GET_NGFLD_NF90 - temperature eastern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = 9.48885098E+00 Max = 1.54457965E+01)
GET_NGFLD_NF90 - salinity eastern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = 3.10616224E+01 Max = 3.35300721E+01)
GET_NGFLD_NF90 - temperature southern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = 2.17789190E+00 Max = 2.89318040E+01)
GET_NGFLD_NF90 - salinity southern boundary condition, 2021-05-03 00:00:00.00
(Grid= 01, Rec=2, Index=1, File: Yuedong_bry_ECCO_Y2021M5.nc)
(Tmin= 44314.0000 Tmax= 44347.0000) t = 44317.0000
(Min = 3.16789866E+01 Max = 3.46201475E+01)
GET_3DFLD_NF90 - u-momentum component climatology, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = -2.87496338E-01 Max = 8.53123859E-01)
GET_3DFLD_NF90 - v-momentum component climatology, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = -4.87102904E-01 Max = 4.78485647E-01)
GET_3DFLD_NF90 - potential temperature climatology, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = 0.00000000E+00 Max = 3.10250610E+01)
GET_3DFLD_NF90 - salinity climatology, 1900-05-17 23:15:04.00
(Grid=01, Rec=5, Index=2, File: ST_clm.nc)
(Tmin= 15.2188 Tmax= 350.0313) t = 136.9688
(Min = 2.97641872E+01 Max = 3.50000000E+01)
