Code: Select all
Model Input Parameters: ROMS/TOMS version 3.5
Thursday - August 23, 2012 - 8:05:16 AM
-----------------------------------------------------------------------------
South_Sea
Operating system : Darwin
CPU/hardware : i386
Compiler system : ifort
Compiler command : /usr/local/mpich-intel/bin//mpif90
Compiler flags : -heap-arrays -fp-model precise -ip -O3 -axP -free
Input Script : para.ini
SVN Root URL : https:://myroms.org/svn/src
SVN Revision : 564M
Local Root : /Users/hd/roms/myroms34/trunk
Header Dir : /Users/hd/roms/myroms34/southsea
Header file : southsea.h
Analytical Dir: /Users/hd/roms/myroms34/southsea
Resolution, Grid 01: 0378x0358x032, Parallel Nodes: 2, Tiling: 001x002
Physical Parameters, Grid: 01
=============================
72000 ntimes Number of timesteps for 3-D equations.
90.000 dt Timestep size (s) for 3-D equations.
9 ndtfast Number of timesteps for 2-D equations between
each 3D timestep.
1 ERstr Starting ensemble/perturbation run number.
1 ERend Ending ensemble/perturbation run number.
1 nrrec Number of restart records to read from disk.
T LcycleRST Switch to recycle time-records in restart file.
240 nRST Number of timesteps between the writing of data
into restart fields.
1 ninfo Number of timesteps between print of information
to standard output.
T ldefout Switch to create a new output NetCDF file(s).
600 nHIS Number of timesteps between the writing fields
into history file.
0.0000E+00 nl_tnu2(01) NLM Horizontal, harmonic mixing coefficient
(m2/s) for tracer 01: temp
0.0000E+00 nl_tnu2(02) NLM Horizontal, harmonic mixing coefficient
(m2/s) for tracer 02: salt
0.0000E+00 nl_visc2 NLM Horizontal, harmonic mixing coefficient
(m2/s) for momentum.
1.0000E-05 Akt_bak(01) Background vertical mixing coefficient (m2/s)
for tracer 01: temp
1.0000E-05 Akt_bak(02) Background vertical mixing coefficient (m2/s)
for tracer 02: salt
1.0000E-04 Akv_bak Background vertical mixing coefficient (m2/s)
for momentum.
5.0000E-06 Akk_bak Background vertical mixing coefficient (m2/s)
for turbulent energy.
5.0000E-06 Akp_bak Background vertical mixing coefficient (m2/s)
for turbulent generic statistical field.
3.000 gls_p GLS stability exponent.
1.500 gls_m GLS turbulent kinetic energy exponent.
-1.000 gls_n GLS turbulent length scale exponent.
7.6000E-06 gls_Kmin GLS minimum value of turbulent kinetic energy.
1.0000E-12 gls_Pmin GLS minimum value of dissipation.
5.4770E-01 gls_cmu0 GLS stability coefficient.
1.4400E+00 gls_c1 GLS shear production coefficient.
1.9200E+00 gls_c2 GLS dissipation coefficient.
-4.0000E-01 gls_c3m GLS stable buoyancy production coefficient.
1.0000E+00 gls_c3p GLS unstable buoyancy production coefficient.
1.0000E+00 gls_sigk GLS constant Schmidt number for TKE.
1.3000E+00 gls_sigp GLS constant Schmidt number for PSI.
0.000 charnok_alpha Charnok factor for Zos calculation.
0.000 zos_hsig_alpha Factor for Zos calculation using Hsig(Awave).
0.000 sz_alpha Factor for Wave dissipation surface tke flux .
0.000 crgban_cw Factor for Craig/Banner surface tke flux.
3.0000E-04 rdrg Linear bottom drag coefficient (m/s).
3.0000E-03 rdrg2 Quadratic bottom drag coefficient.
0.0000E+00 Zob Bottom roughness (m).
0.0000E+00 Zos Surface roughness (m).
1.0000E+01 blk_ZQ Height (m) of surface air humidity measurement.
1.0000E+01 blk_ZT Height (m) of surface air temperature measurement.
1.0000E+01 blk_ZW Height (m) of surface winds measurement.
1 lmd_Jwt Jerlov water type.
2 Vtransform S-coordinate transformation equation.
1 Vstretching S-coordinate stretching function.
5.0000E+00 theta_s S-coordinate surface control parameter.
4.0000E-01 theta_b S-coordinate bottom control parameter.
10.000 Tcline S-coordinate surface/bottom layer width (m) used
in vertical coordinate stretching.
1000.000 rho0 Mean density (kg/m3) for Boussinesq approximation.
0.000 dstart Time-stamp assigned to model initialization (days).
0.00 time_ref Reference time for units attribute (yyyymmdd.dd)
0.0000E+00 Tnudg(01) Nudging/relaxation time scale (days)
for tracer 01: temp
0.0000E+00 Tnudg(02) Nudging/relaxation time scale (days)
for tracer 02: salt
0.0000E+00 Znudg Nudging/relaxation time scale (days)
for free-surface.
0.0000E+00 M2nudg Nudging/relaxation time scale (days)
for 2D momentum.
0.0000E+00 M3nudg Nudging/relaxation time scale (days)
for 3D momentum.
0.0000E+00 obcfac Factor between passive and active
open boundary conditions.
0.000 T0 Background potential temperature (C) constant.
0.000 S0 Background salinity (PSU) constant.
1.000 gamma2 Slipperiness variable: free-slip (1.0) or
no-slip (-1.0).
T Hout(idFsur) Write out free-surface.
T Hout(idUbar) Write out 2D U-momentum component.
T Hout(idVbar) Write out 2D V-momentum component.
T Hout(idUvel) Write out 3D U-momentum component.
T Hout(idVvel) Write out 3D V-momentum component.
T Hout(idWvel) Write out W-momentum component.
T Hout(idOvel) Write out omega vertical velocity.
T Hout(idTvar) Write out tracer 01: temp
T Hout(idTvar) Write out tracer 02: salt
T Hout(idDano) Write out density anomaly.
T Hout(idVvis) Write out vertical viscosity: AKv.
Output/Input Files:
Output Restart File: ocean_rst2.nc
Output History File: ocean_his2.nc
Input Grid File: southsea2012_grd.nc
Input Nonlinear Initial File: southsea2012_ini.nc
Input Forcing File 01: southsea2012_frc.nc
Input Boundary File: rnt/southsea2012_bry.nc
Tile partition information for Grid 01: 0378x0358x0032 tiling: 001x002
tile Istr Iend Jstr Jend Npts
0 1 378 1 179 2165184
1 1 378 180 358 2165184
Tile minimum and maximum fractional grid coordinates:
(interior points only)
tile Xmin Xmax Ymin Ymax grid
0 0.50 378.50 0.50 179.50 RHO-points
1 0.50 378.50 179.50 358.50 RHO-points
0 1.00 378.00 0.50 179.50 U-points
1 1.00 378.00 179.50 358.50 U-points
0 0.50 378.50 1.00 179.50 V-points
1 0.50 378.50 179.50 358.00 V-points
Maximum halo size in XI and ETA directions:
HaloSizeI(1) = 778
HaloSizeJ(1) = 382
TileSide(1) = 383
TileSize(1) = 70855
Activated C-preprocessing Options:
southSEA South_Sea
ANA_BSFLUX Analytical kinematic bottom salinity flux.
ANA_BTFLUX Analytical kinematic bottom temperature flux.
ASSUMED_SHAPE Using assumed-shape arrays.
BULK_FLUXES Surface bulk fluxes parametererization.
CURVGRID Orthogonal curvilinear grid.
DIURNAL_SRFLUX Modulate shortwave radiation by the local diurnal cycle.
DJ_GRADPS Parabolic Splines density Jacobian (Shchepetkin, 2002).
DOUBLE_PRECISION Double precision arithmetic.
EAST_FSCHAPMAN Eastern edge, free-surface, Chapman condition.
EAST_M2FLATHER Eastern edge, 2D momentum, Flather condition.
EAST_M3CLAMPED Eastern edge, 3D momentum, Clamped condition.
EAST_TCLAMPED Eastern edge, tracers, Clamped condition.
EMINUSP Compute Salt Flux using E-P.
GLS_MIXING Generic Length-Scale turbulence closure.
KANTHA_CLAYSON Kantha and Clayson stability function formulation.
LONGWAVE_OUT Compute outgoing longwave radiation internally.
MASKING Land/Sea masking.
MIX_GEO_TS Mixing of tracers along geopotential surfaces.
MIX_S_UV Mixing of momentum along constant S-surfaces.
MPI MPI distributed-memory configuration.
NONLINEAR Nonlinear Model.
NONLIN_EOS Nonlinear Equation of State for seawater.
NORTH_FSCHAPMAN Northern edge, free-surface, Chapman condition.
NORTH_M2FLATHER Northern edge, 2D momentum, Flather condition.
NORTH_M3CLAMPED Northern edge, 3D momentum, Clamped condition.
NORTH_TCLAMPED Northern edge, tracers, Clamped condition.
N2S2_HORAVG Horizontal smoothing of buoyancy and shear.
POWER_LAW Power-law shape time-averaging barotropic filter.
PROFILE Time profiling activated .
K_GSCHEME Third-order upstream advection of TKE fields.
!RST_SINGLE Double precision fields in restart NetCDF file.
SALINITY Using salinity.
SOLAR_SOURCE Solar Radiation Source Term.
SOLVE3D Solving 3D Primitive Equations.
SOUTH_FSCHAPMAN Southern edge, free-surface, Chapman condition.
SOUTH_M2FLATHER Southern edge, 2D momentum, Flather condition.
SOUTH_M3CLAMPED Southern edge, 3D momentum, Clamped condition.
SOUTH_TCLAMPED Southern edge, tracers, Clamped condition.
SPLINES Conservative parabolic spline reconstruction.
SPHERICAL Spherical grid configuration.
SPONGE Enhanced horizontal mixing in the sponge areas.
TS_U3HADVECTION Third-order upstream horizontal advection of tracers.
TS_C4VADVECTION Fourth-order centered vertical advection of tracers.
TS_DIF2 Harmonic mixing of tracers.
UV_ADV Advection of momentum.
UV_COR Coriolis term.
UV_U3HADVECTION Third-order upstream horizontal advection of 3D momentum.
UV_C4VADVECTION Fourth-order centered vertical advection of momentum.
UV_QDRAG Quadratic bottom stress.
UV_VIS2 Harmonic mixing of momentum.
VAR_RHO_2D Variable density barotropic mode.
Process Information:
Node # 0 (pid= 22488) is active.
Node # 1 (pid= 19760) is active.
INITIAL: Configuring and initializing forward nonlinear model ...
Vertical S-coordinate System:
level S-coord Cs-curve Z at hmin at hc half way at hmax
32 0.0000000 0.0000000 0.000 0.000 0.000 0.000
31 -0.0312500 -0.0022549 -0.168 -0.168 -6.350 -12.388
30 -0.0625000 -0.0048948 -0.337 -0.337 -13.730 -26.839
29 -0.0937500 -0.0080749 -0.509 -0.509 -22.557 -44.182
28 -0.1250000 -0.0119914 -0.685 -0.685 -33.356 -65.469
27 -0.1562500 -0.0168927 -0.866 -0.866 -46.793 -92.031
26 -0.1875000 -0.0230908 -1.053 -1.053 -63.702 -125.538
25 -0.2187500 -0.0309708 -1.249 -1.249 -85.114 -168.052
24 -0.2500000 -0.0409944 -1.455 -1.455 -112.268 -222.047
23 -0.2812500 -0.0536924 -1.675 -1.675 -146.582 -290.365
22 -0.3125000 -0.0696342 -1.911 -1.911 -189.583 -376.055
21 -0.3437500 -0.0893672 -2.166 -2.166 -242.736 -482.049
20 -0.3750000 -0.1133185 -2.442 -2.442 -307.186 -610.636
19 -0.4062500 -0.1416675 -2.740 -2.740 -383.411 -762.775
18 -0.4375000 -0.1742175 -3.059 -3.059 -470.887 -937.413
17 -0.4687500 -0.2103218 -3.395 -3.395 -567.880 -1131.086
16 -0.5000000 -0.2489214 -3.745 -3.745 -671.555 -1338.123
15 -0.5312500 -0.2887177 -4.100 -4.100 -778.435 -1551.570
14 -0.5625000 -0.3284417 -4.455 -4.455 -885.121 -1764.630
13 -0.5937500 -0.3671228 -4.804 -4.804 -989.014 -1972.103
12 -0.6250000 -0.4042644 -5.146 -5.146 -1088.785 -2171.332
11 -0.6562500 -0.4398848 -5.481 -5.481 -1184.482 -2362.414
10 -0.6875000 -0.4744488 -5.810 -5.810 -1277.351 -2547.838
9 -0.7187500 -0.5087464 -6.137 -6.137 -1369.506 -2731.836
8 -0.7500000 -0.5437741 -6.469 -6.469 -1463.616 -2919.743
7 -0.7812500 -0.5806477 -6.809 -6.809 -1562.669 -3117.537
6 -0.8125000 -0.6205544 -7.165 -7.165 -1669.845 -3331.575
5 -0.8437500 -0.6647399 -7.542 -7.542 -1788.478 -3568.528
4 -0.8750000 -0.7145184 -7.948 -7.948 -1922.088 -3835.436
3 -0.9062500 -0.7712996 -8.388 -8.388 -2074.451 -4139.847
2 -0.9375000 -0.8366254 -8.871 -8.871 -2249.695 -4490.021
1 -0.9687500 -0.9122123 -9.405 -9.405 -2452.416 -4895.149
0 -1.0000000 -1.0000000 -10.000 -10.000 -2687.810 -5365.620
Time Splitting Weights: ndtfast = 9 nfast = 13
Primary Secondary Accumulated to Current Step
1 0.0020364543700987 0.1111111111111111 0.0020364543700987 0.1111111111111111
2 0.0081423516807323 0.1108848384033223 0.0101788060508311 0.2219959495144335
3 0.0182864997349408 0.1099801326610188 0.0284653057857719 0.3319760821754522
4 0.0323475955445464 0.1079482993571365 0.0608129013303183 0.4399243815325887
5 0.0500102513402867 0.1043541220744091 0.1108231526706050 0.5442785036069977
6 0.0706194309860016 0.0987974274810439 0.1814425836566066 0.6430759310880416
7 0.0929932967968730 0.0909508240381548 0.2744358804534797 0.7340267551261964
8 0.1151944667617182 0.0806182355051689 0.3896303472151979 0.8146449906313653
9 0.1342596821693365 0.0678188503094224 0.5238900293845344 0.8824638409407878
10 0.1458878856389088 0.0529011078461628 0.6697779150234432 0.9353649487869506
11 0.1440867095544515 0.0366913427751730 0.8138646245778947 0.9720562915621236
12 0.1207773749033226 0.0206817083802339 0.9346419994812172 0.9927379999423575
13 0.0653580005187826 0.0072620000576425 0.9999999999999998 1.0000000000000000
ndtfast, nfast = 9 13 nfast/ndtfast = 1.44444
Centers of gravity and integrals (values must be 1, 1, approx 1/2, 1, 1):
1.000000000000 1.083631825329 0.541815912665 1.000000000000 1.000000000000
Power filter parameters, Fgamma, gamma = 0.28400 0.00000
Minimum X-grid spacing, DXmin = 2.38424540E+00 km
Maximum X-grid spacing, DXmax = 8.53876089E+00 km
Minimum Y-grid spacing, DYmin = 3.08795992E+00 km
Maximum Y-grid spacing, DYmax = 9.94775766E+00 km
Minimum Z-grid spacing, DZmin = 1.67524434E-01 m
Maximum Z-grid spacing, DZmax = 4.70470903E+02 m
Minimum barotropic Courant Number = 1.59192139E-02
Maximum barotropic Courant Number = 4.27050946E-01
Maximum Coriolis Courant Number = 5.16361271E-03
NLM: GET_STATE - Read state initial conditions, t = 0 00:00:00
(File: southsea2012_ini.nc, Rec=0001, Index=1)
- free-surface
(Min = 0.00000000E+00 Max = 0.00000000E+00)
- vertically integrated u-momentum component
(Min = 0.00000000E+00 Max = 0.00000000E+00)
- vertically integrated v-momentum component
(Min = 0.00000000E+00 Max = 0.00000000E+00)
- u-momentum component
(Min = 0.00000000E+00 Max = 0.00000000E+00)
- v-momentum component
(Min = 0.00000000E+00 Max = 0.00000000E+00)
- potential temperature
(Min = 1.00998491E+00 Max = 2.96956050E+01)
- salinity
(Min = 2.94033954E+01 Max = 3.50299926E+01)
GET_2DFLD - surface u-wind component, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -9.51582279E+00 Max = 3.39370625E+00)
GET_2DFLD - surface v-wind component, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -9.12874444E+00 Max = -1.51403108E-01)
GET_2DFLD - surface air pressure, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 1.00918056E+03 Max = 1.01960408E+03)
GET_2DFLD - solar shortwave radiation flux, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 2.64019335E-05 Max = 4.98503556E-05)
GET_2DFLD - downwelling longwave radiation flux, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 8.13027358E-05 Max = 1.04959257E-04)
GET_2DFLD - surface air temperature, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 1.81269569E+01 Max = 2.82614824E+01)
GET_2DFLD - surface air relative humidity, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 7.37835999E-01 Max = 8.49440016E-01)
GET_2DFLD - rain fall rate, t = 345 00:00:00
(Rec=0012, Index=1, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.65831263E-06 Max = 1.19896346E-04)
GET_NGFLD - free-surface eastern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.04938970E-01 Max = 5.39443795E-02)
GET_NGFLD - free-surface southern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 0.00000000E+00 Max = 3.45140437E-01)
GET_NGFLD - free-surface northern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -8.46820972E-02 Max = 2.37409635E-02)
GET_NGFLD - 2D u-momentum eastern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.05745179E-01 Max = 1.12963062E-01)
GET_NGFLD - 2D v-momentum eastern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.64431079E-01 Max = 1.32986371E-01)
GET_NGFLD - 2D u-momentum southern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -4.25512775E-02 Max = 1.02525889E-02)
GET_NGFLD - 2D v-momentum southern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -6.61152090E-02 Max = 5.38647064E-02)
GET_NGFLD - 2D u-momentum northern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 0.00000000E+00 Max = 1.20633476E-02)
GET_NGFLD - 2D v-momentum northern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.54876184E-03 Max = 1.80039973E-02)
GET_NGFLD - 3D u-momentum eastern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -2.36025823E-01 Max = 1.93699978E-01)
GET_NGFLD - 3D v-momentum eastern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -2.84188818E-01 Max = 4.79846932E-01)
GET_NGFLD - 3D u-momentum southern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -7.41717477E-02 Max = 2.05983589E-02)
GET_NGFLD - 3D v-momentum southern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.40678430E-01 Max = 1.19201540E-01)
GET_NGFLD - 3D u-momentum northern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -2.04374539E-03 Max = 3.01733123E-02)
GET_NGFLD - 3D v-momentum northern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -5.39660018E-03 Max = 4.06704033E-02)
GET_NGFLD - temperature eastern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 2.26234973E+00 Max = 2.92821597E+01)
GET_NGFLD - salinity eastern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 3.31653714E+01 Max = 3.47828366E+01)
GET_NGFLD - temperature southern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 3.58342220E+00 Max = 2.93760120E+01)
GET_NGFLD - salinity southern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 3.03248198E+01 Max = 3.48744274E+01)
GET_NGFLD - temperature northern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 2.08878426E+01 Max = 2.42159190E+01)
GET_NGFLD - salinity northern boundary condition, t = 345 00:00:00
(Rec=0012, Index=2, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 2.68756965E+01 Max = 3.47764573E+01)
Maximum grid stiffness ratios: rx0 = 3.069334E-01 (Beckmann and Haidvogel)
rx1 = 9.416266E+00 (Haney)
Initial basin volumes: TotVolume = 4.1073132888E+15 m3
MinVolume = 6.4173169552E+06 m3
MaxVolume = 2.5091605958E+10 m3
Max/Min = 3.9099838972E+03
NL ROMS/TOMS: started time-stepping: (Grid: 01 TimeSteps: 00000001 - 00072000)
GET_2DFLD - surface u-wind component, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -8.47976738E+00 Max = 5.14942244E+00)
GET_2DFLD - surface v-wind component, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -8.60785679E+00 Max = 1.70728176E-01)
GET_2DFLD - surface air pressure, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 1.00913328E+03 Max = 1.01991374E+03)
GET_2DFLD - solar shortwave radiation flux, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 2.74973133E-05 Max = 5.20150240E-05)
GET_2DFLD - downwelling longwave radiation flux, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 8.29663275E-05 Max = 1.03522925E-04)
GET_2DFLD - surface air temperature, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 1.60999184E+01 Max = 2.80809454E+01)
GET_2DFLD - surface air relative humidity, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 7.40901947E-01 Max = 8.58145370E-01)
GET_2DFLD - rain fall rate, t = 15 00:00:00
(Rec=0001, Index=2, File: southsea2012_frc.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -9.55106197E-06 Max = 1.38071025E-04)
GET_NGFLD - free-surface eastern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.96120652E-01 Max = 5.08092590E-02)
GET_NGFLD - free-surface southern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 0.00000000E+00 Max = 4.25729693E-01)
GET_NGFLD - free-surface northern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -9.79222626E-02 Max = 3.13438820E-02)
GET_NGFLD - 2D u-momentum eastern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.77855057E-01 Max = 2.26948792E-01)
GET_NGFLD - 2D v-momentum eastern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -4.29227736E-01 Max = 1.60314516E-01)
GET_NGFLD - 2D u-momentum southern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -3.89490618E-02 Max = 1.88929858E-02)
GET_NGFLD - 2D v-momentum southern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -8.35157011E-02 Max = 8.53220221E-02)
GET_NGFLD - 2D u-momentum northern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 0.00000000E+00 Max = 2.13904517E-02)
GET_NGFLD - 2D v-momentum northern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.48704332E-03 Max = 2.96492477E-02)
GET_NGFLD - 3D u-momentum eastern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -3.16814478E-01 Max = 4.92955030E-01)
GET_NGFLD - 3D v-momentum eastern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -7.32225337E-01 Max = 5.33770588E-01)
GET_NGFLD - 3D u-momentum southern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -7.74111031E-02 Max = 2.98046285E-02)
GET_NGFLD - 3D v-momentum southern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -1.78695627E-01 Max = 1.84854131E-01)
GET_NGFLD - 3D u-momentum northern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -2.21232575E-03 Max = 5.21252952E-02)
GET_NGFLD - 3D v-momentum northern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = -9.54543610E-03 Max = 6.74086822E-02)
GET_NGFLD - temperature eastern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 2.26078187E+00 Max = 2.93209212E+01)
GET_NGFLD - salinity eastern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 3.33929114E+01 Max = 3.48432600E+01)
GET_NGFLD - temperature southern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 3.59805859E+00 Max = 2.93209212E+01)
GET_NGFLD - salinity southern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 3.10507369E+01 Max = 3.47537850E+01)
GET_NGFLD - temperature northern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 1.78687857E+01 Max = 2.32269094E+01)
GET_NGFLD - salinity northern boundary condition, t = 15 00:00:00
(Rec=0001, Index=1, File: southsea2012_bry.nc)
(Tmin= 15.0000 Tmax= 345.0000)
(Min = 3.19560246E+01 Max = 3.45651214E+01)
volume = 4.924104978081719E+015 avgpe = 6.267835317610791E+019
volume = 4.924104978081719E+015 avgpe = 6.267835317610791E+019
STEP Day HH:MM:SS KINETIC_ENRG POTEN_ENRG TOTAL_ENRG NET_VOLUME
C => (i,j,k) Cu Cv Cw Max Speed
0 0 00:00:00 6.711673E-07 1.272888E+04 1.272888E+04 4.924105E+15
(378,303,06) 2.006515E-03 0.000000E+00 0.000000E+00 2.028955E-01
DEF_HIS - creating history file: ocean_his2.nc
WRT_HIS - wrote history fields (Index=1,1) into time record = 0000001

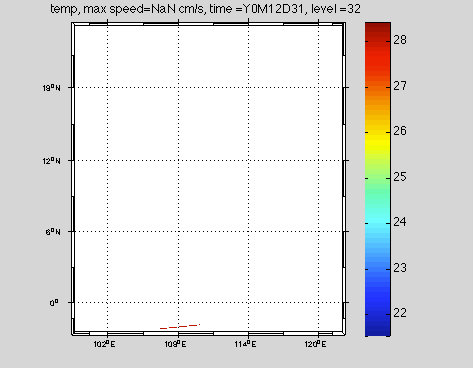

volume = 4.924105294627492E+015 avgpe = NaN
volume = 4.924105294627492E+015 avgpe = NaN
1 0 00:01:30 1.245361E-06 NaN NaN 4.924105E+15
(378,322,11) 9.248940E-04 2.067024E-04 1.258541E-02 2.703812E-01
Blowing-up: Saving latest model state into RESTART file
WRT_RST - wrote re-start fields (Index=2,2) into time record = 0000001
Elapsed CPU time (seconds):
Node # 0 CPU: 20.938
Node # 1 CPU: 17.828
Total: 38.766
Nonlinear model elapsed time profile:
Allocation and array initialization .............. 1.672 ( 4.3128 %)
Ocean state initialization ....................... 0.391 ( 1.0077 %)
Reading of input data ............................ 0.281 ( 0.7255 %)
Processing of input data ......................... 0.062 ( 0.1612 %)
Computation of global information integrals ...... 9.484 (24.4659 %)
Writing of output data ........................... 3.266 ( 8.4240 %)
Model 2D kernel .................................. 2.531 ( 6.5296 %)
2D/3D coupling, vertical metrics ................. 0.734 ( 1.8944 %)
Omega vertical velocity .......................... 0.219 ( 0.5643 %)
Equation of state for seawater ................... 1.547 ( 3.9903 %)
Atmosphere-Ocean bulk flux parameterization ...... 0.375 ( 0.9674 %)
GLS vertical mixing parameterization ............. 5.188 (13.3817 %)
3D equations right-side terms .................... 1.250 ( 3.2245 %)
3D equations predictor step ...................... 1.375 ( 3.5470 %)
Pressure gradient ................................ 0.734 ( 1.8944 %)
Harmonic mixing of tracers, geopotentials ........ 1.641 ( 4.2322 %)
Harmonic stress tensor, S-surfaces ............... 0.672 ( 1.7332 %)
Corrector time-step for 3D momentum .............. 0.766 ( 1.9750 %)
Corrector time-step for tracers .................. 1.031 ( 2.6602 %)
Total: 33.219 85.6913
Nonlinear model message Passage profile:
Message Passage: 2D halo exchanges ............... 0.047 ( 0.1209 %)
Message Passage: 3D halo exchanges ............... 0.047 ( 0.1209 %)
Message Passage: 4D halo exchanges ............... 0.016 ( 0.0403 %)
Message Passage: data broadcast .................. 0.188 ( 0.4837 %)
Message Passage: data reduction .................. 0.016 ( 0.0403 %)
Message Passage: data gathering .................. 2.750 ( 7.0939 %)
Message Passage: data scattering.................. 1.094 ( 2.8214 %)
Total: 4.156 10.7215
All percentages are with respect to total time = 38.766
ROMS/TOMS - Output NetCDF summary for Grid 01:
number of time records written in HISTORY file = 00000001
number of time records written in RESTART file = 00000001
Analytical header files used:
ROMS/Functionals/ana_btflux.h
ROMS/Functionals/ana_hmixcoef.h
ROMS/Functionals/ana_srflux.h
ROMS/TOMS: DONE... Thursday - August 23, 2012 - 8:06:29 AM
